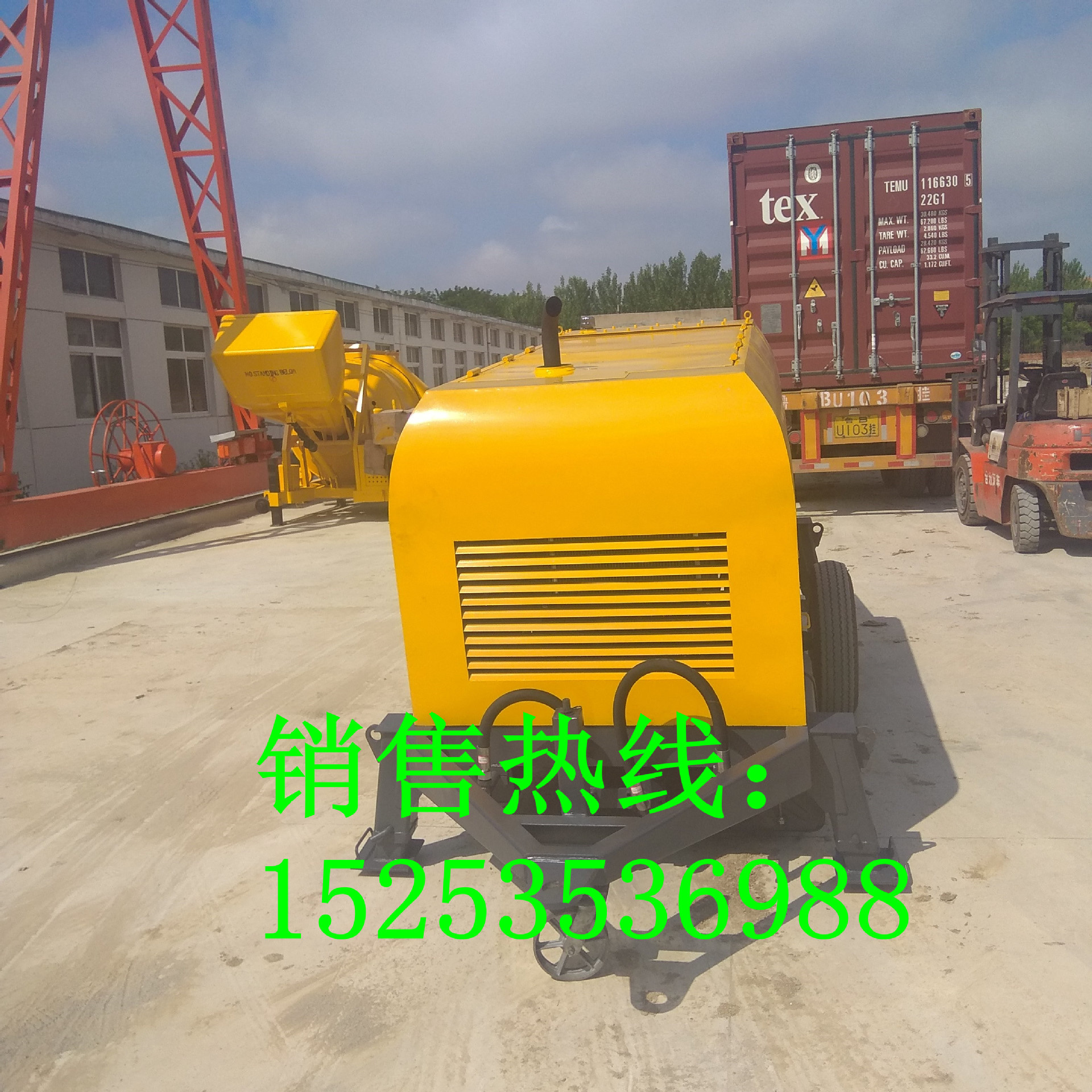

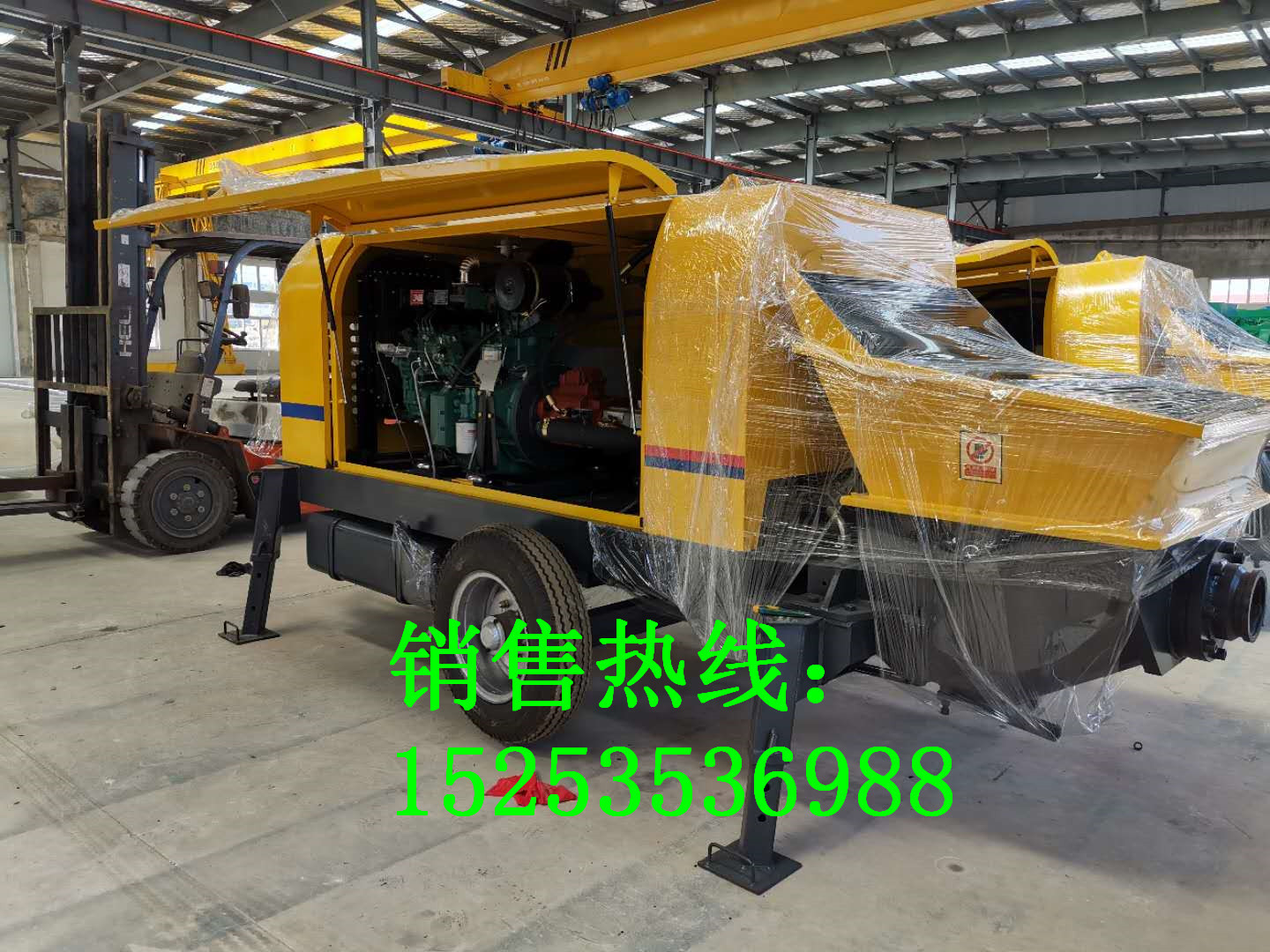

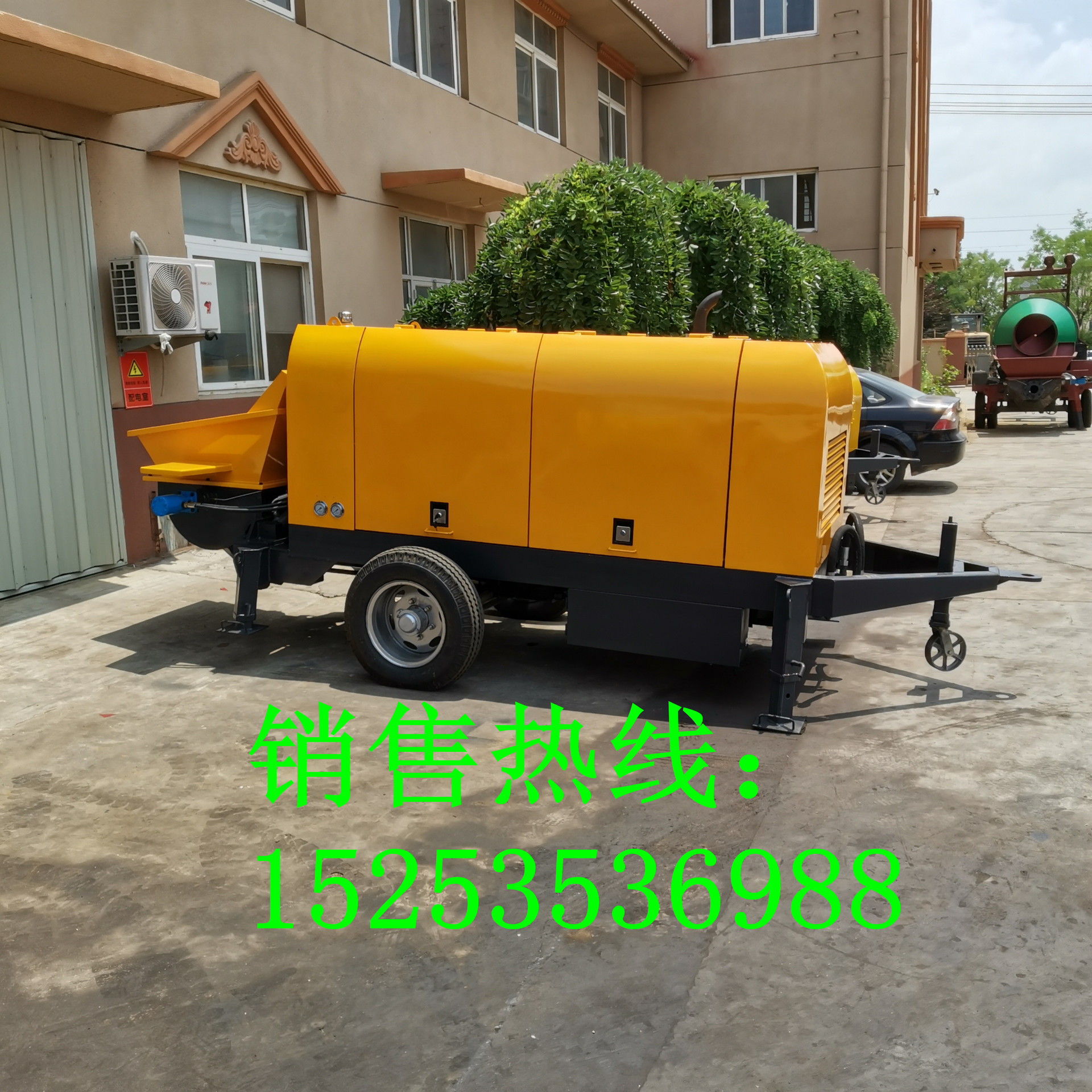

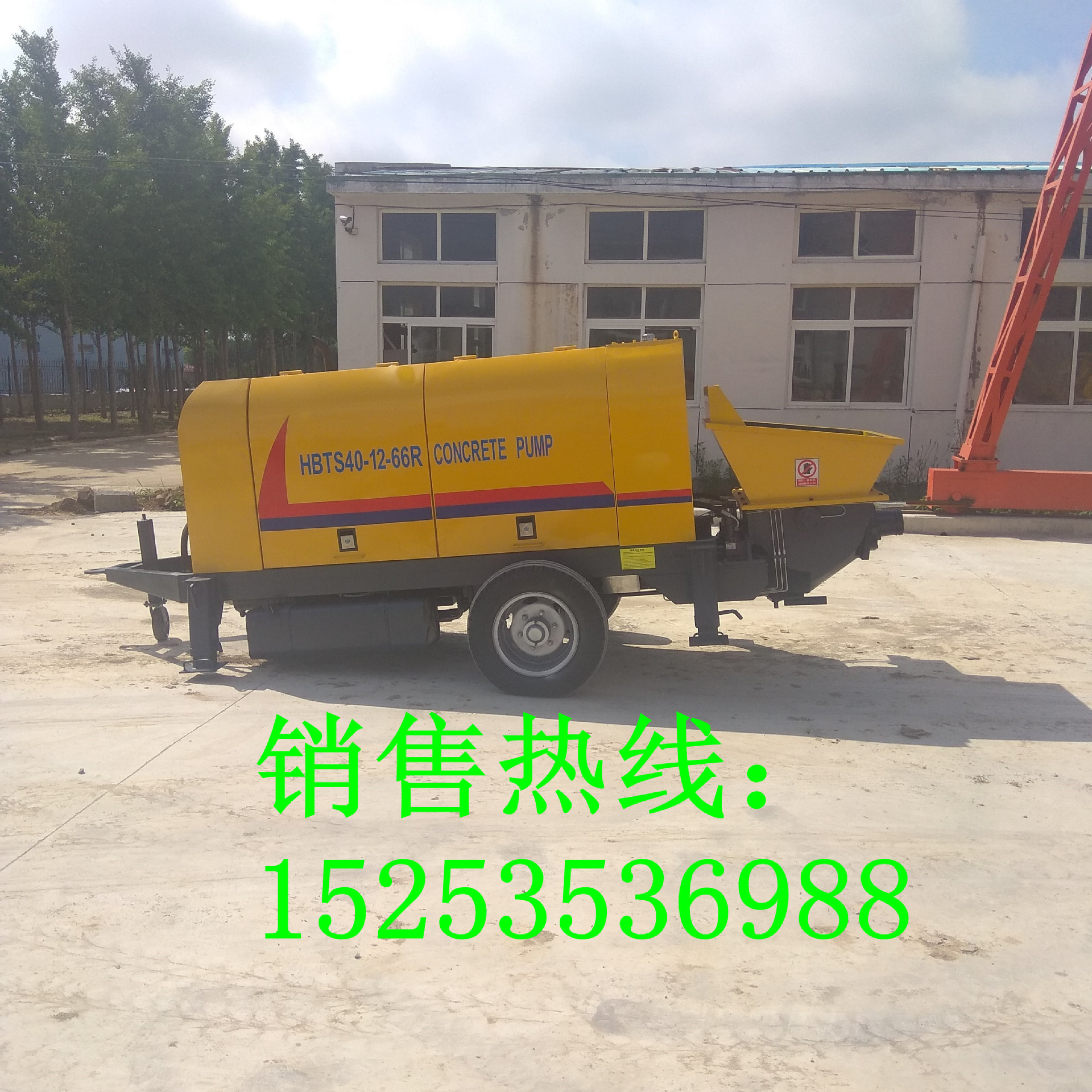

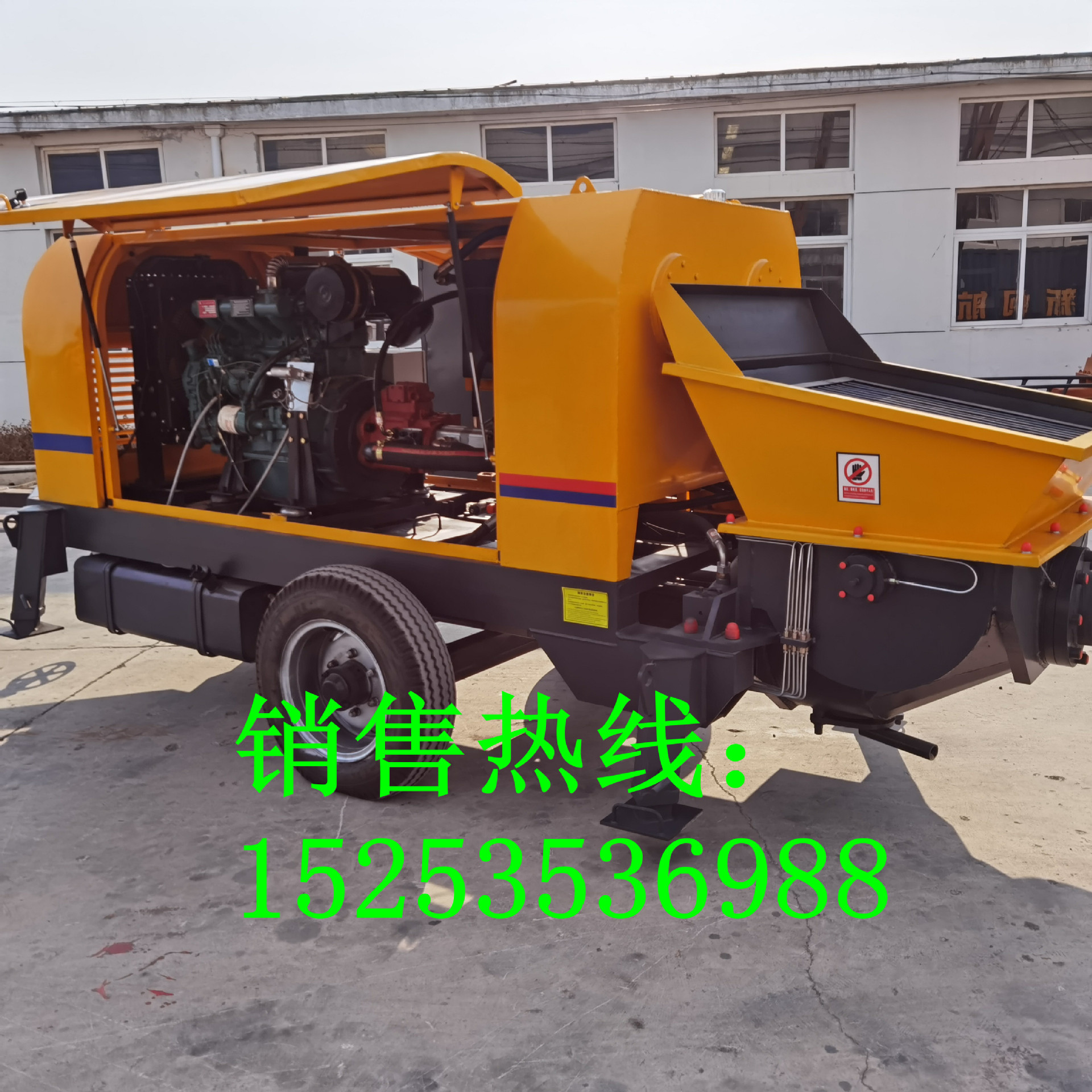

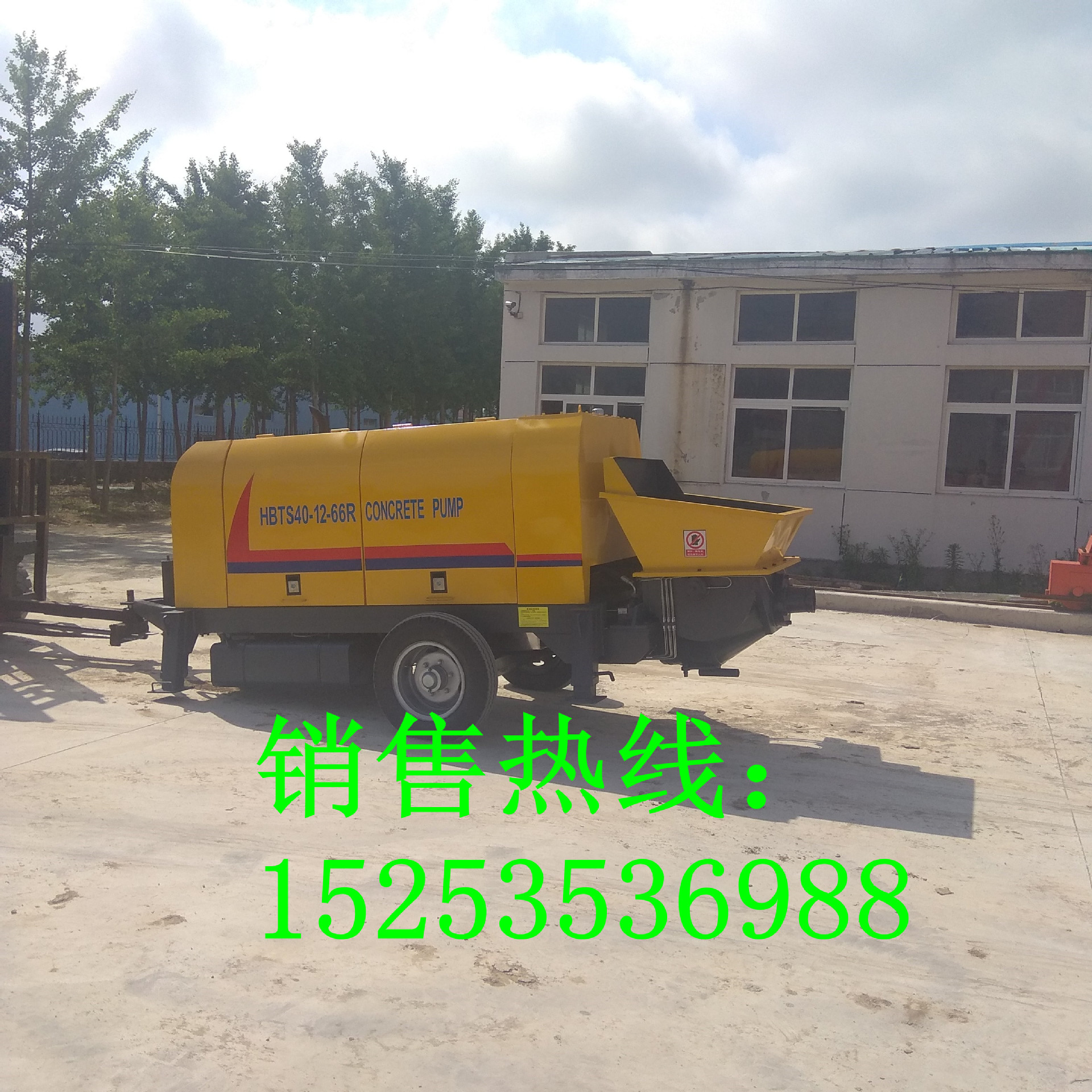

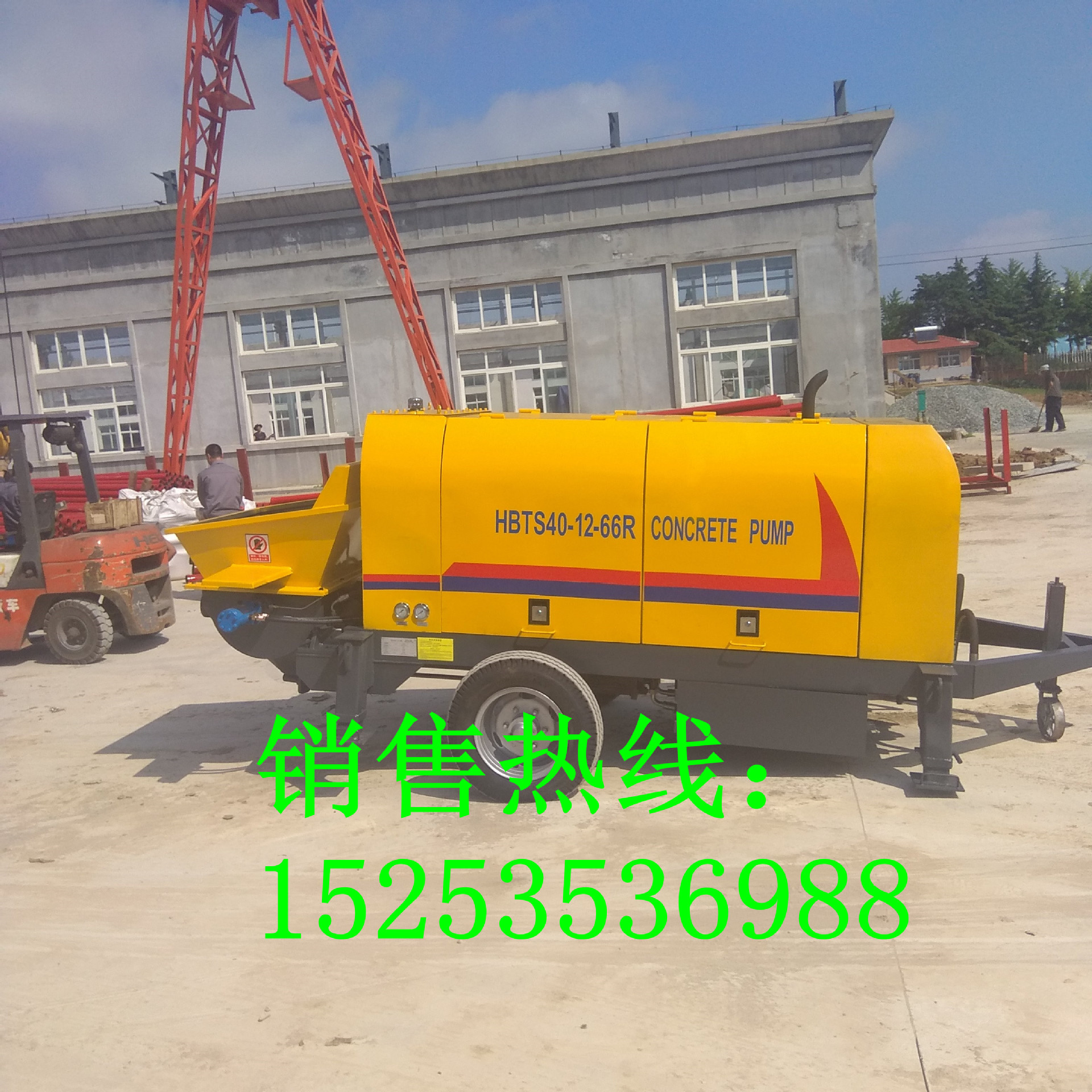

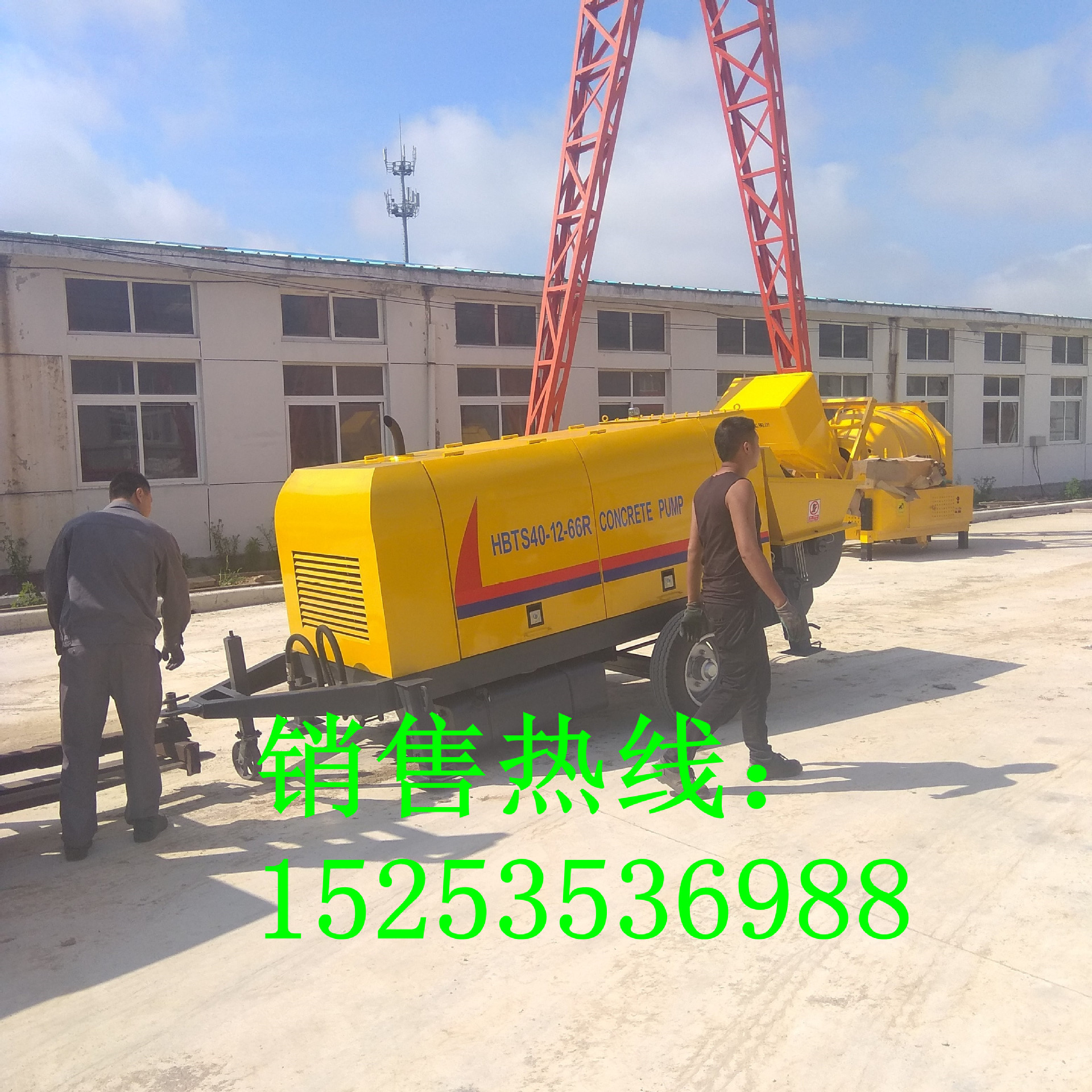

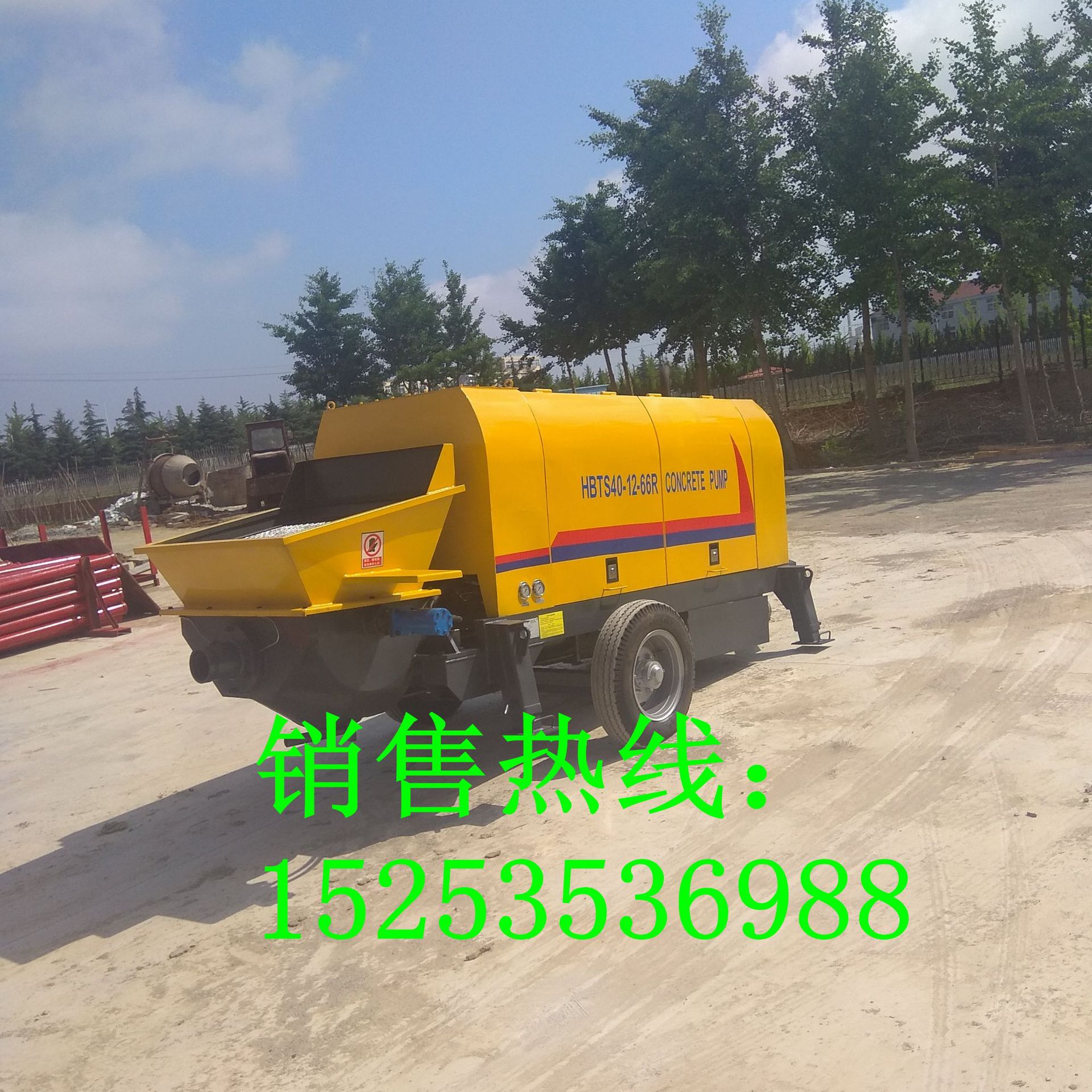

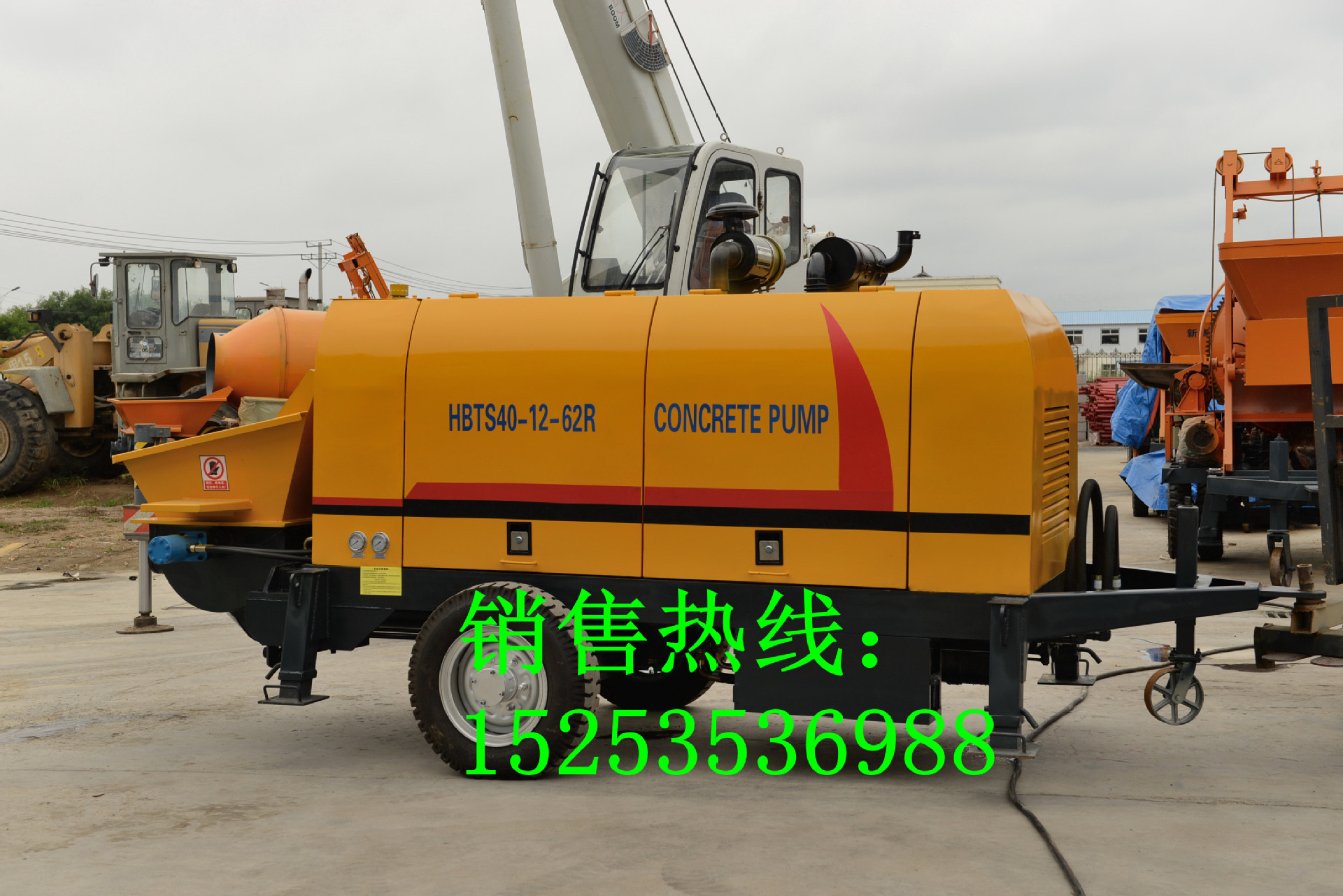

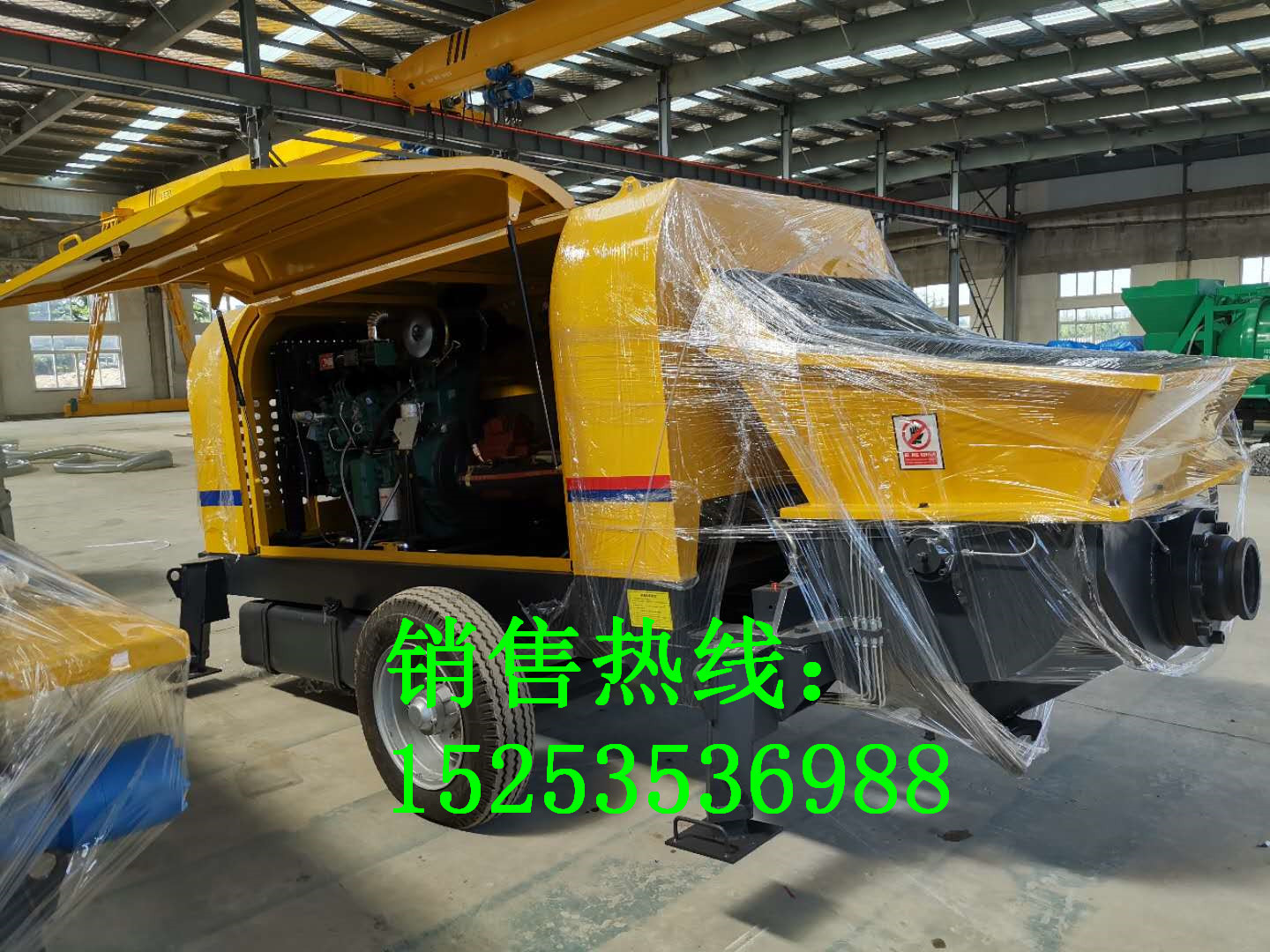

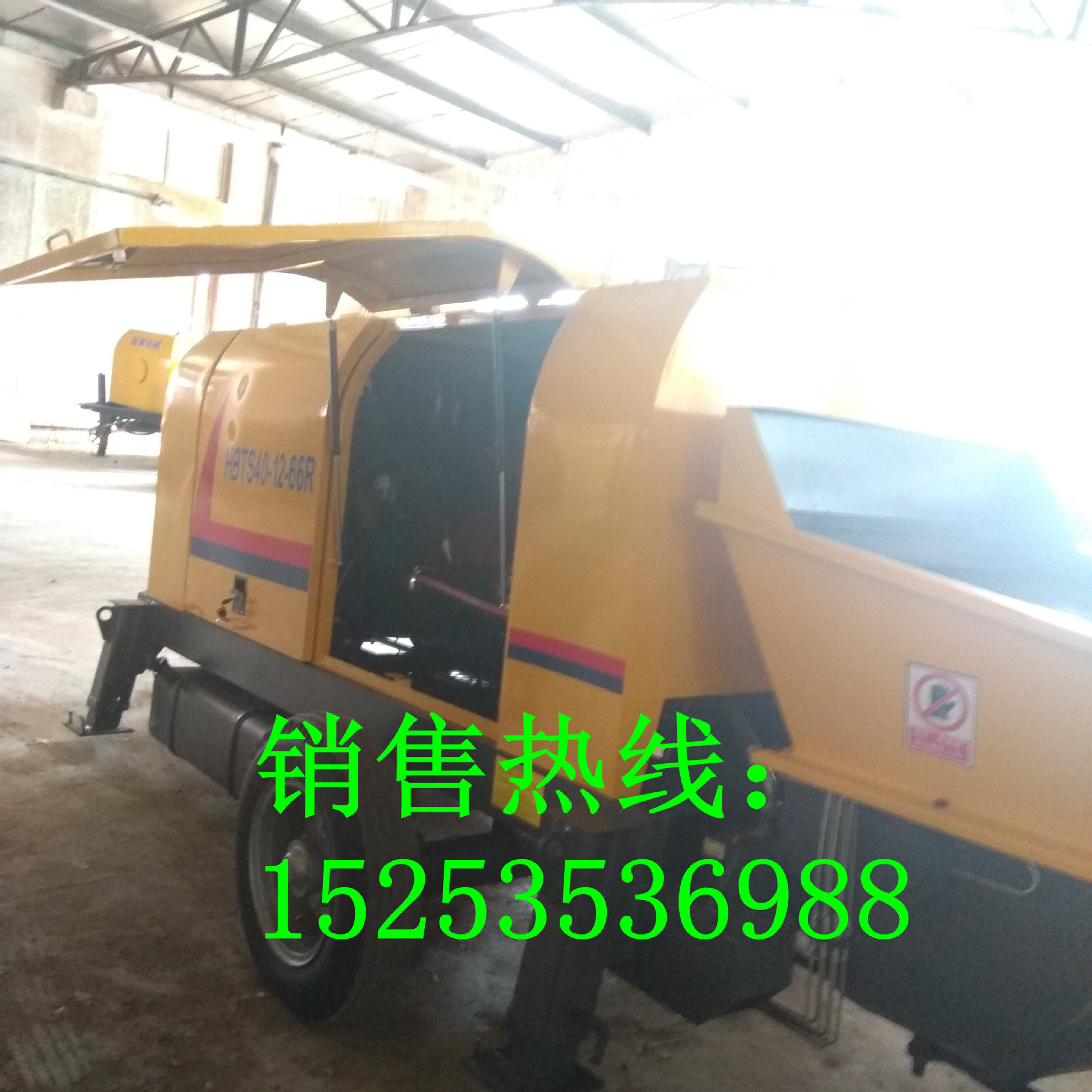

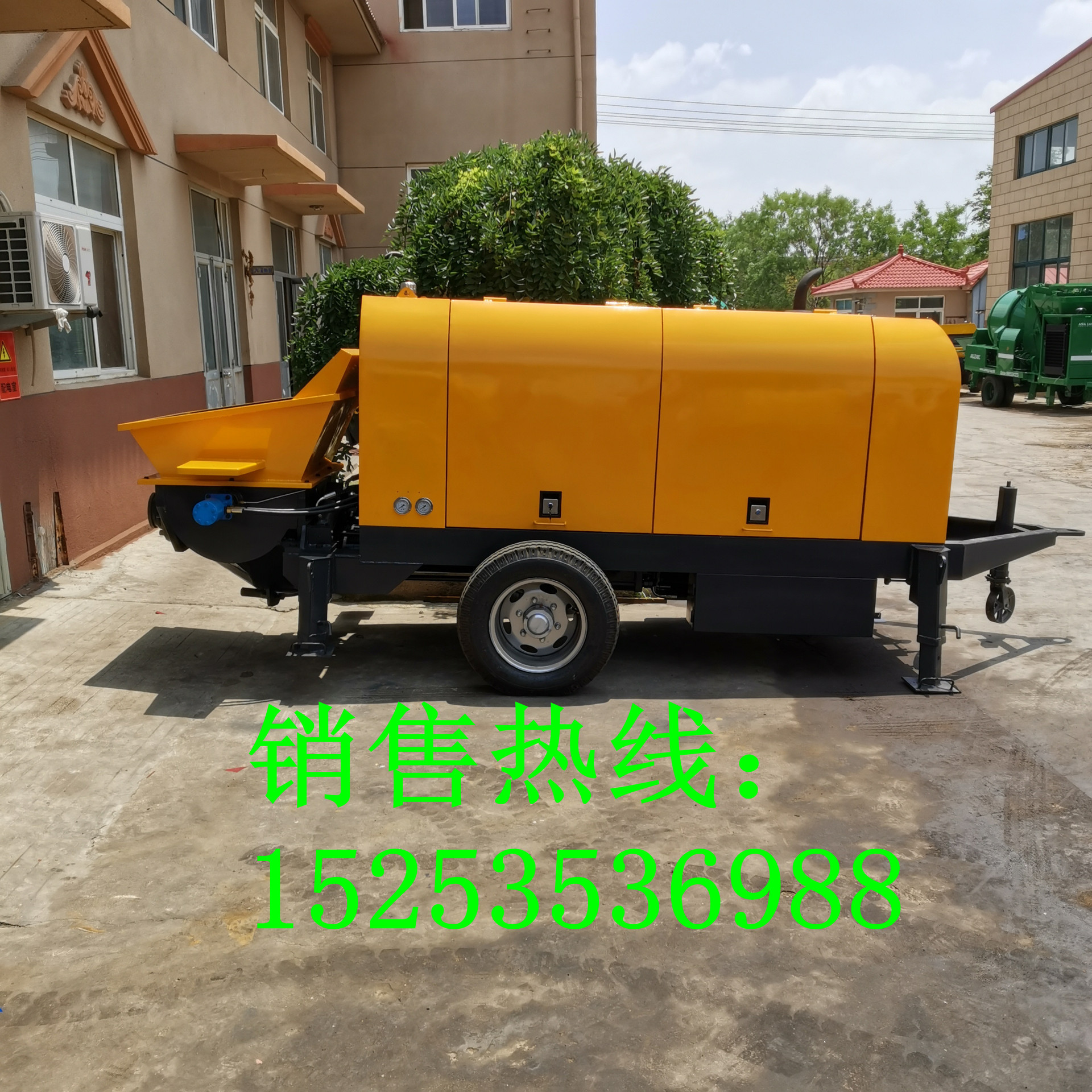

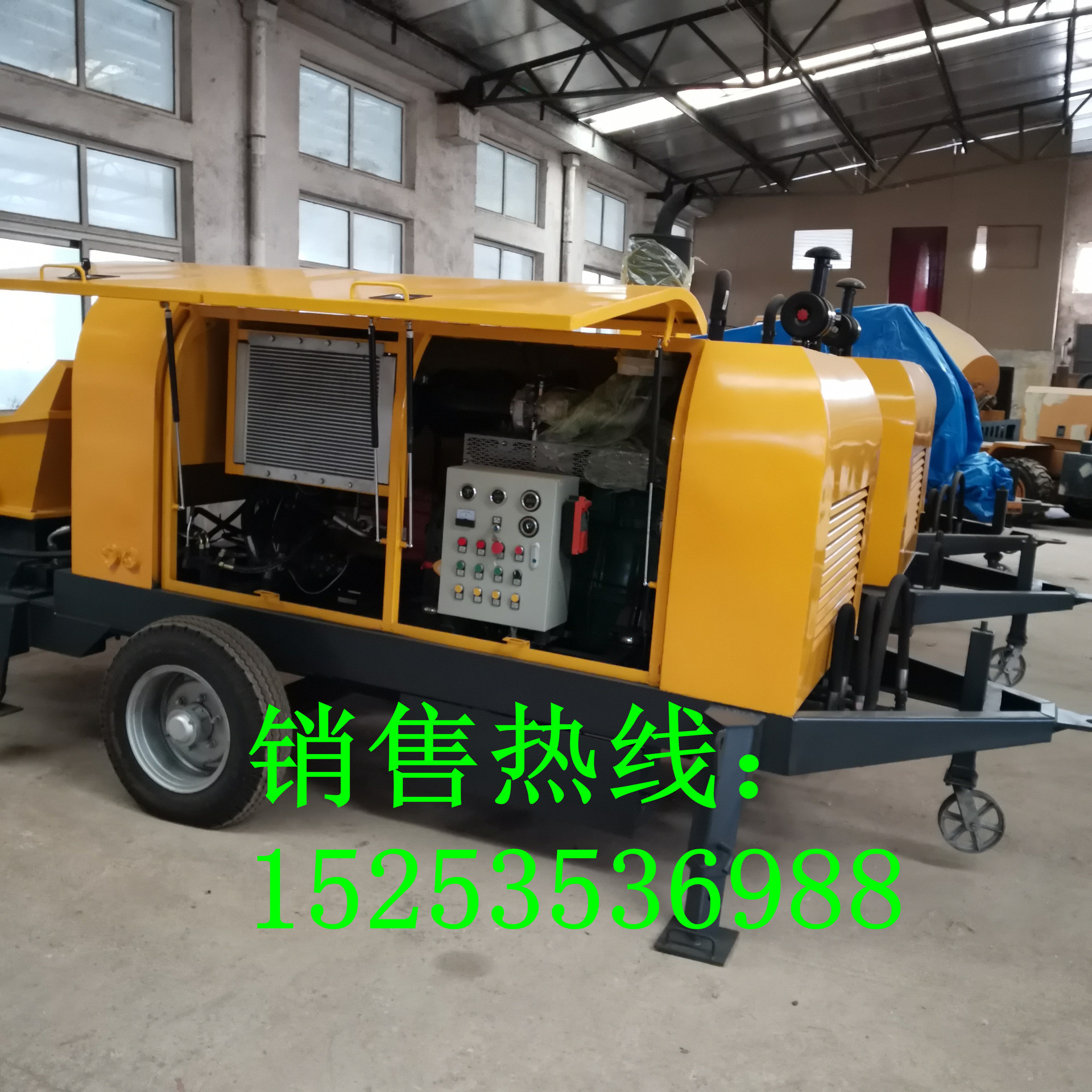

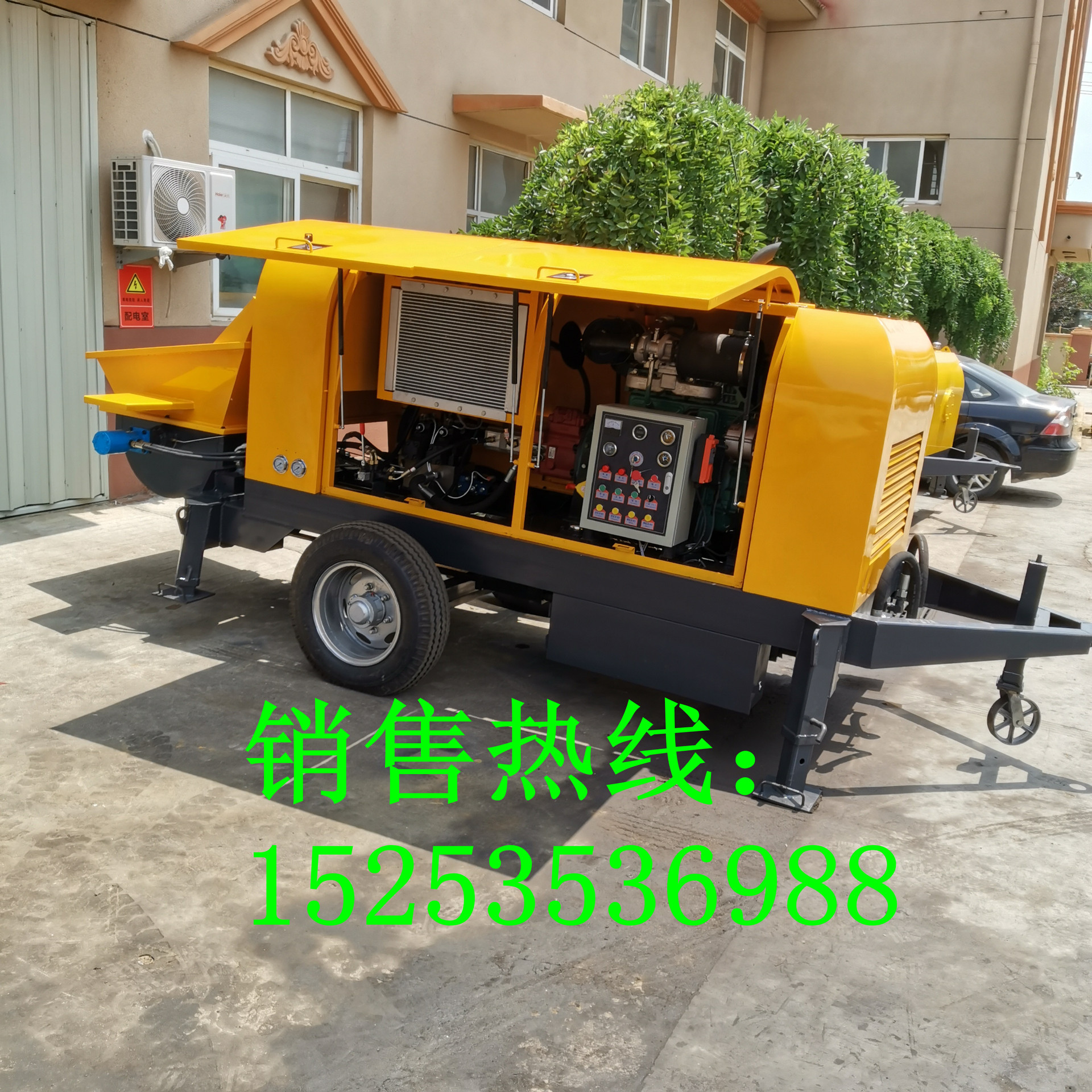

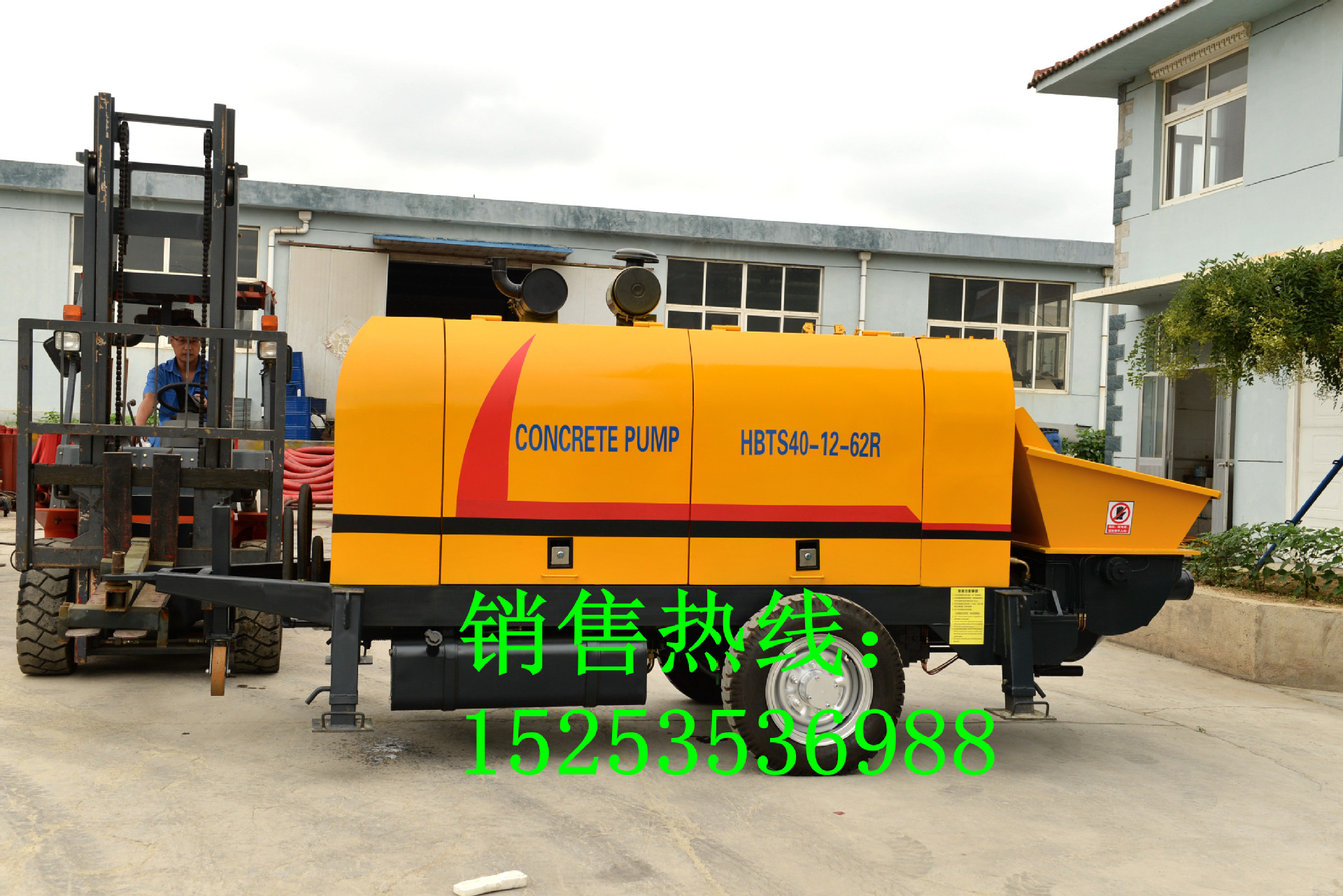

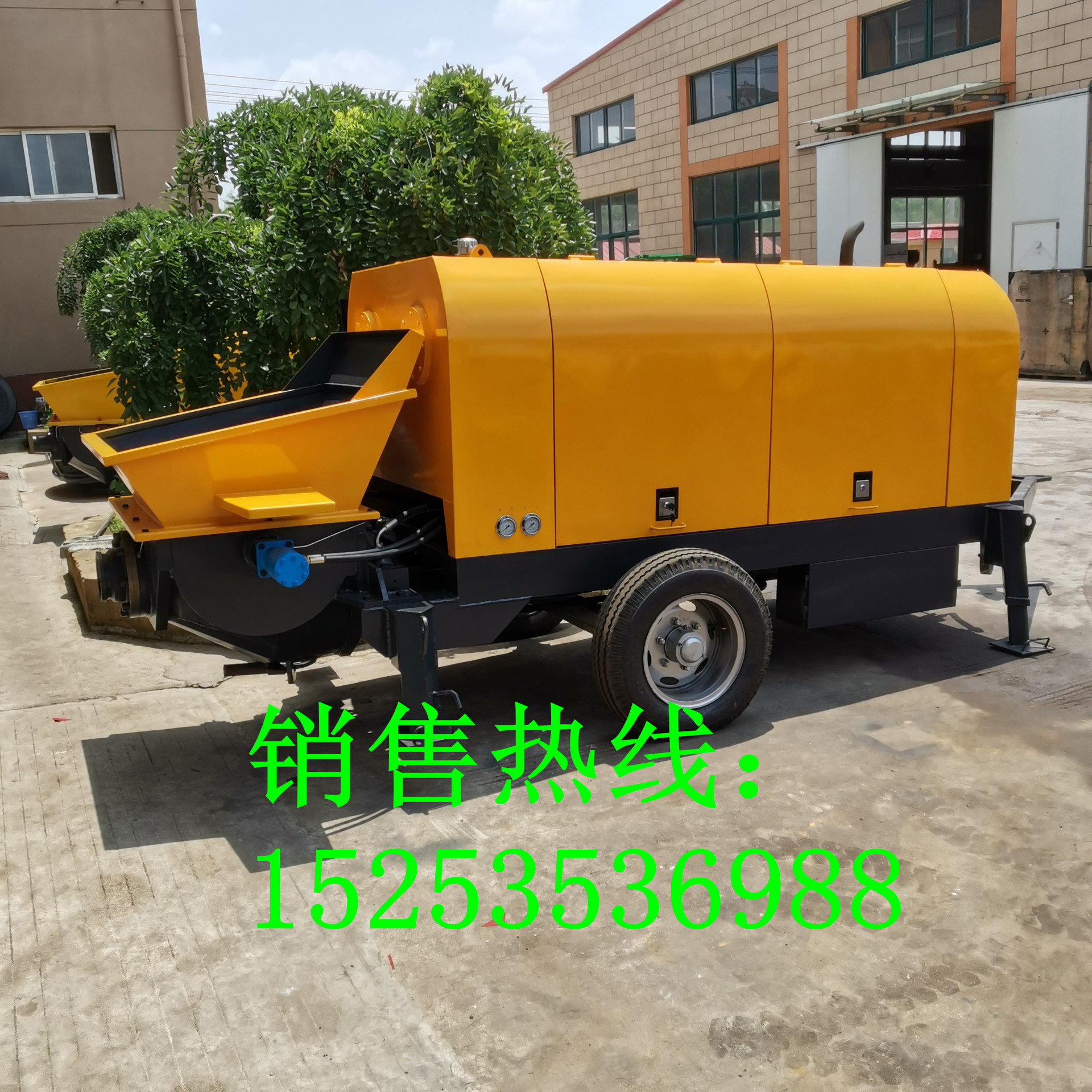

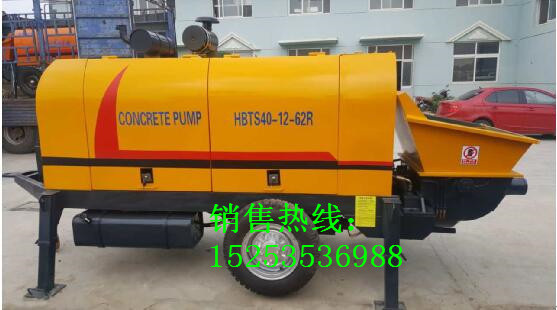

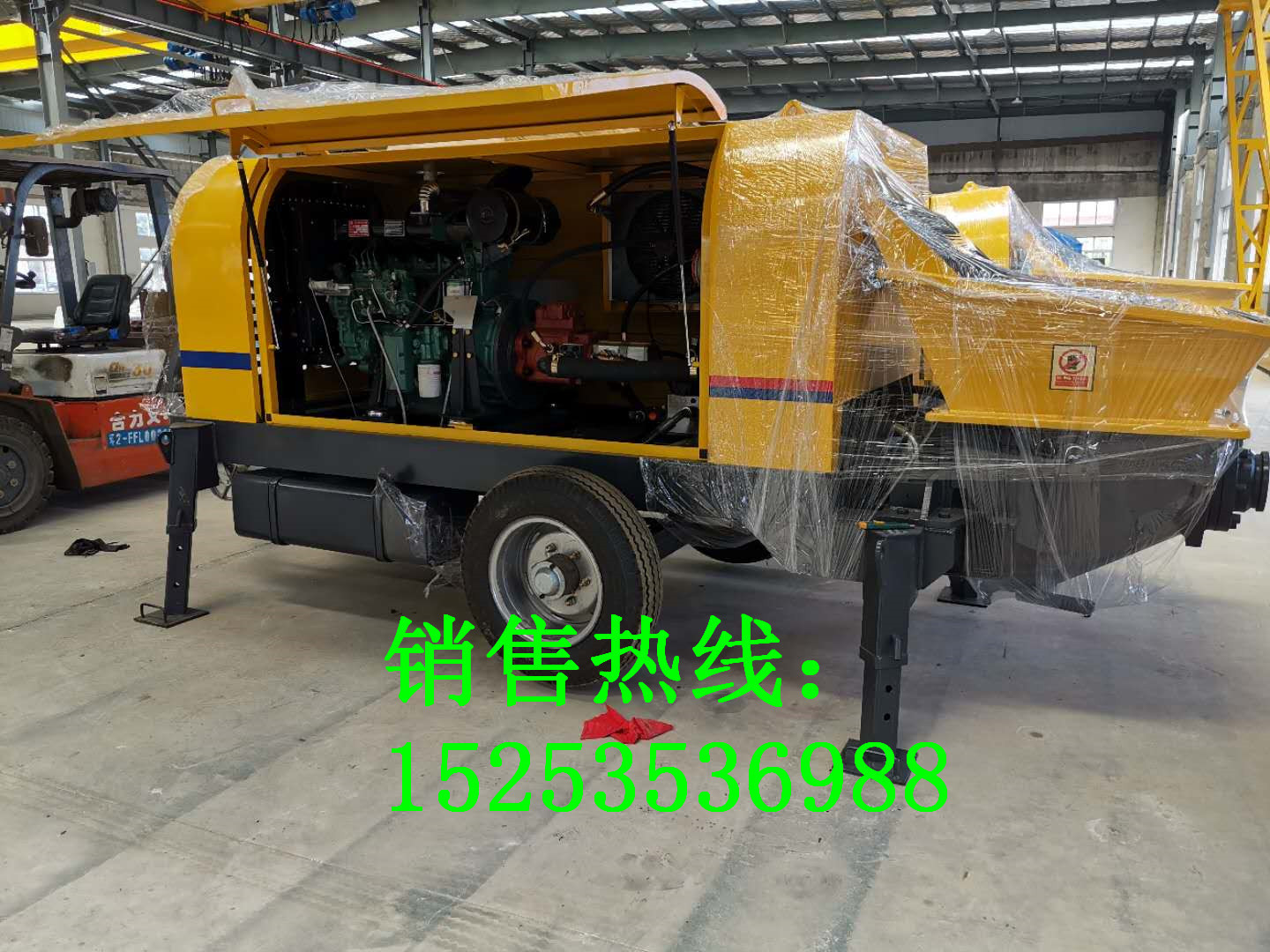

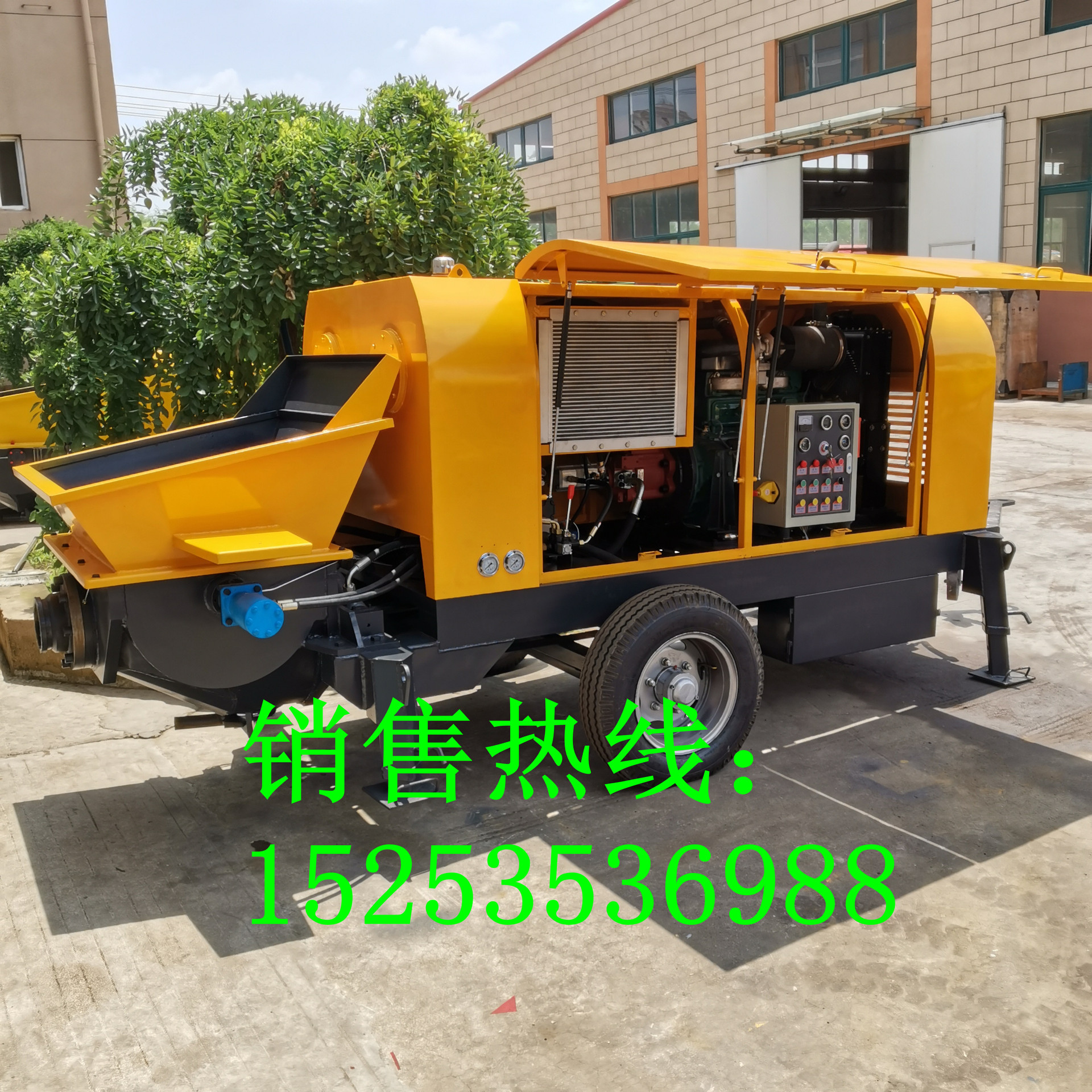

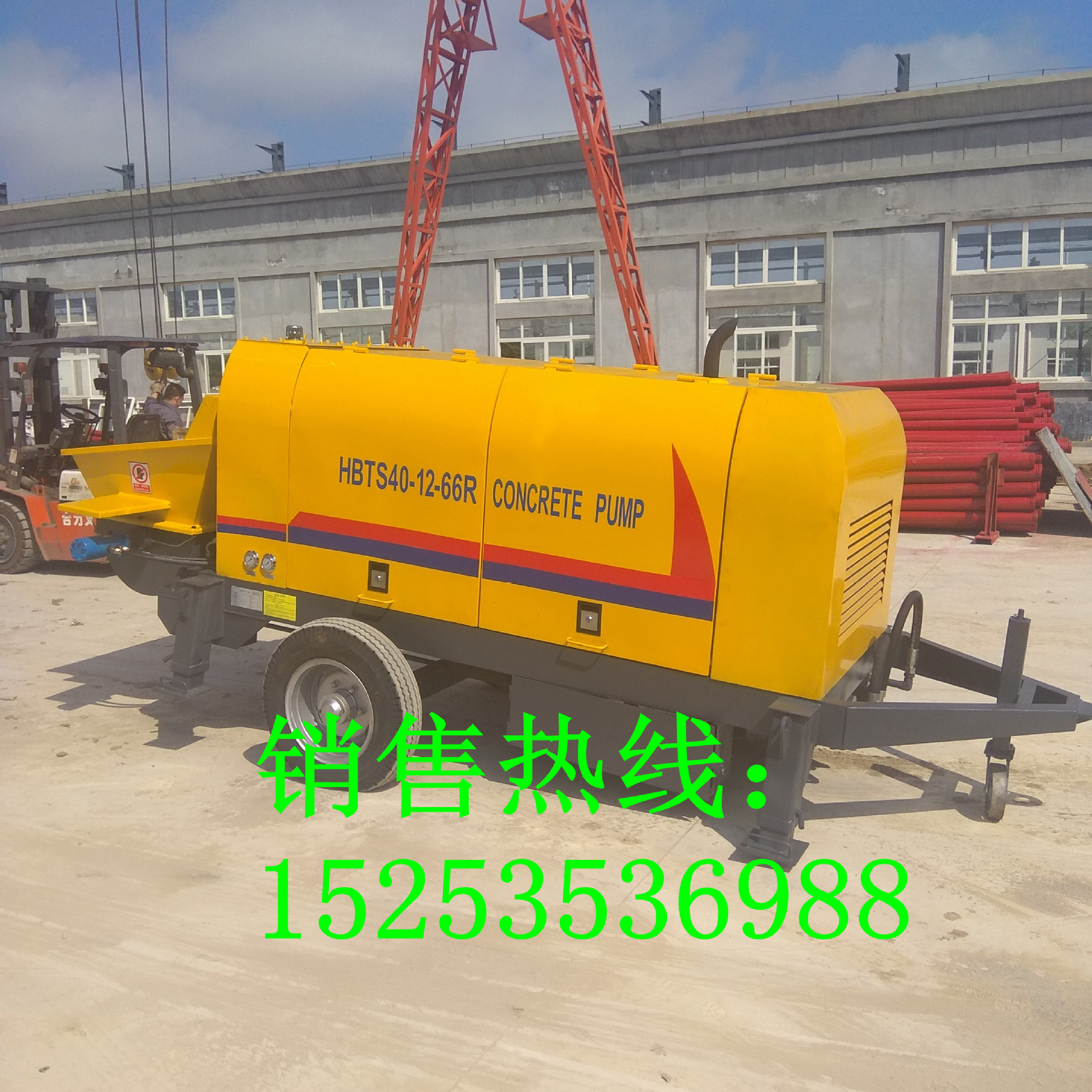

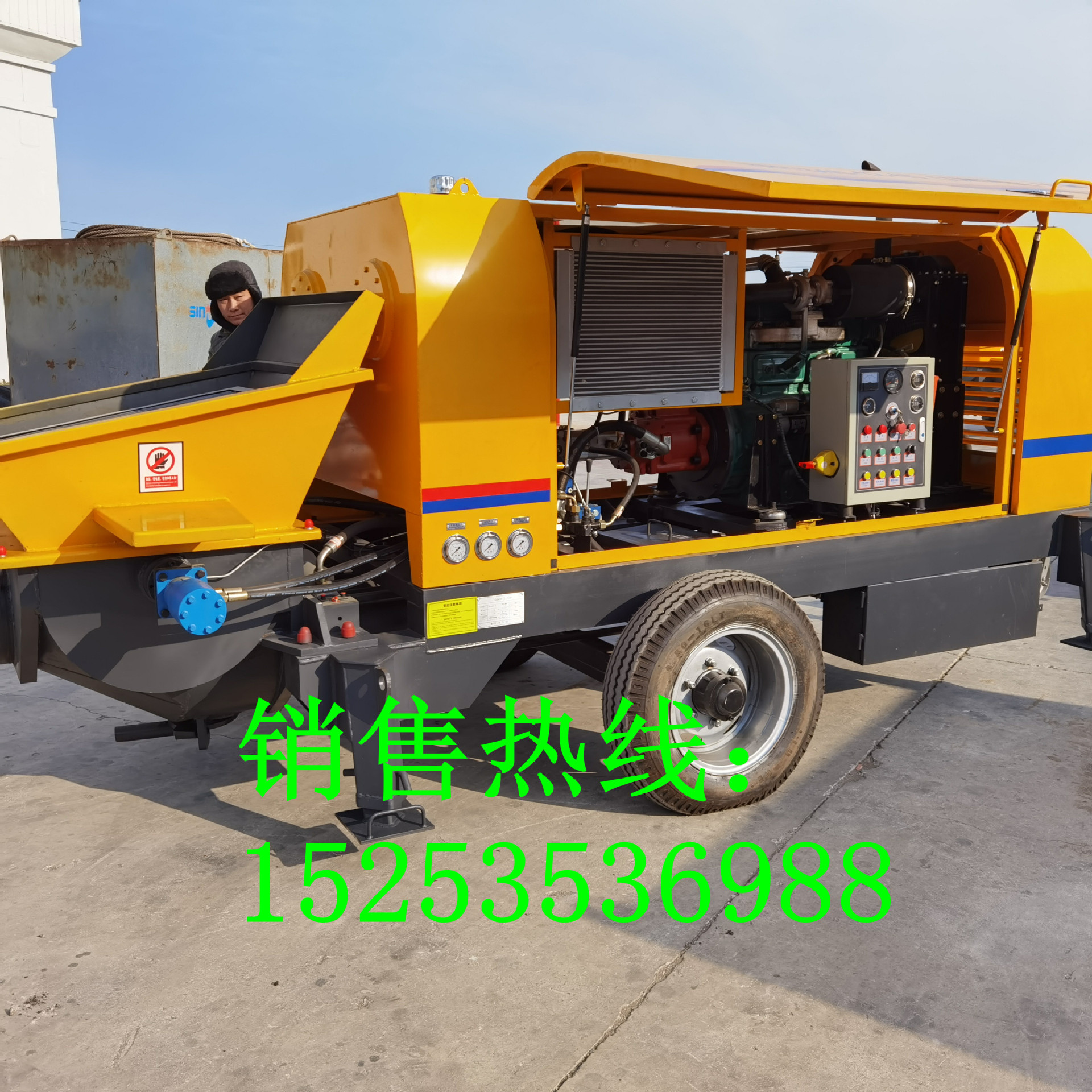

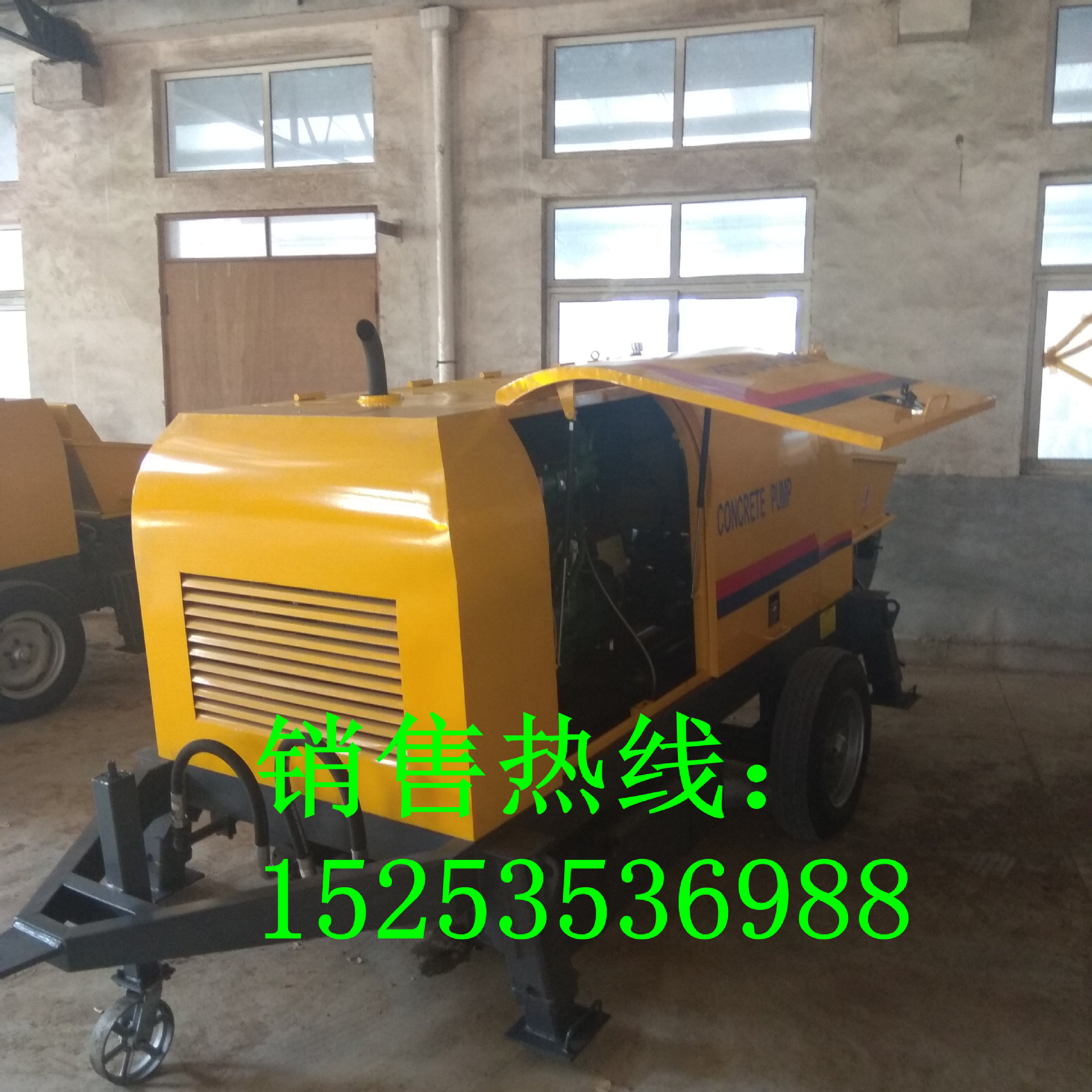

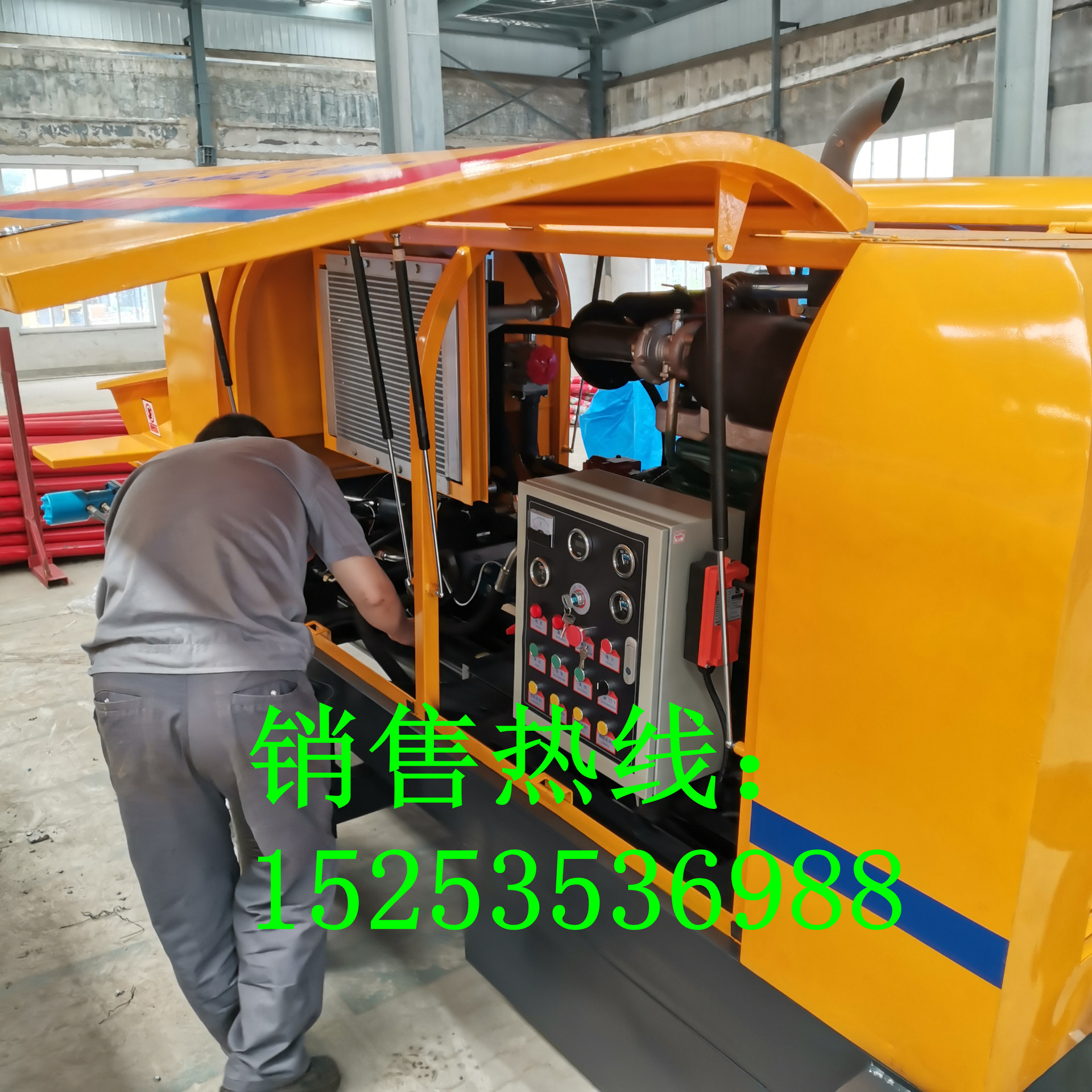

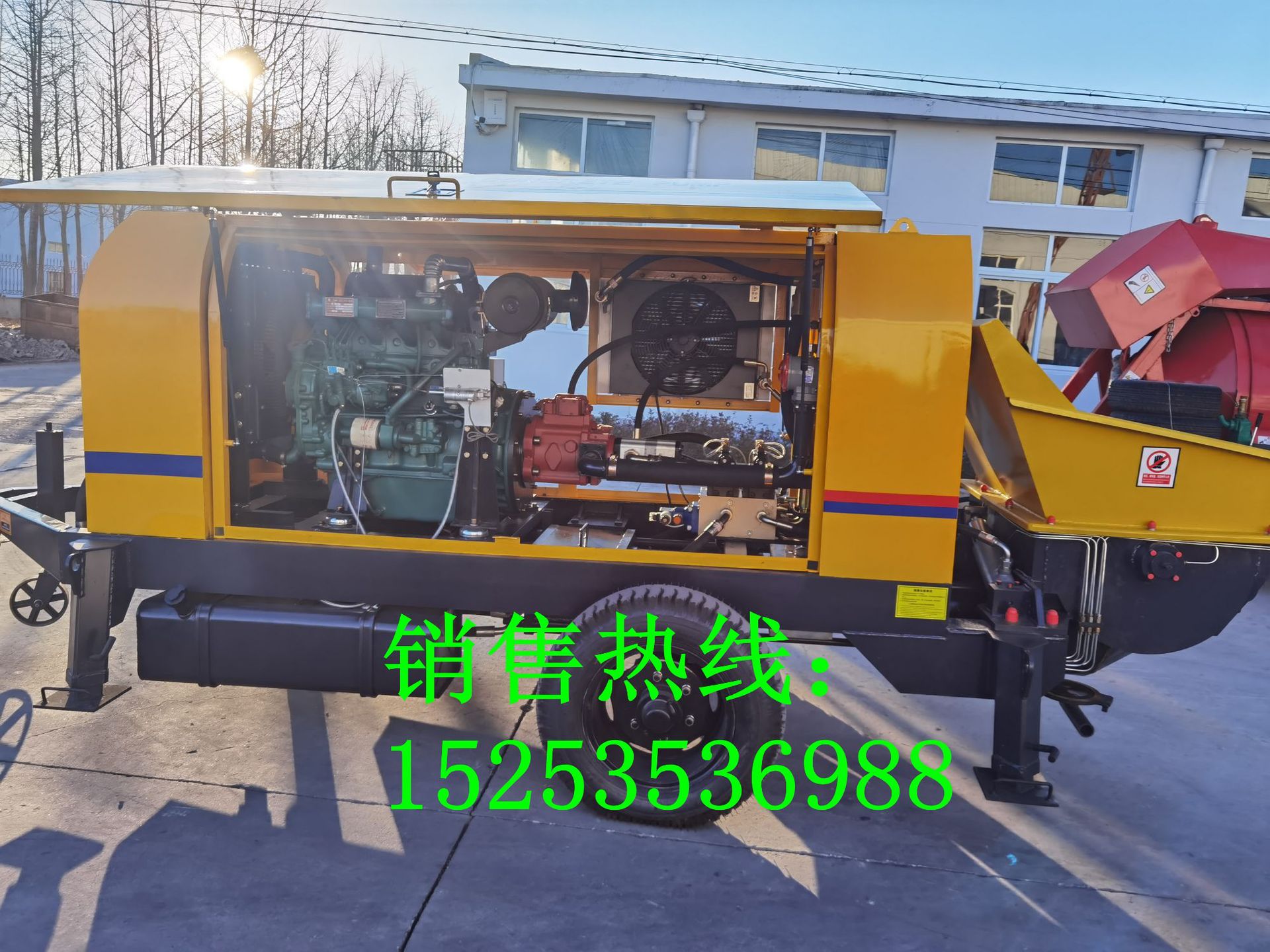

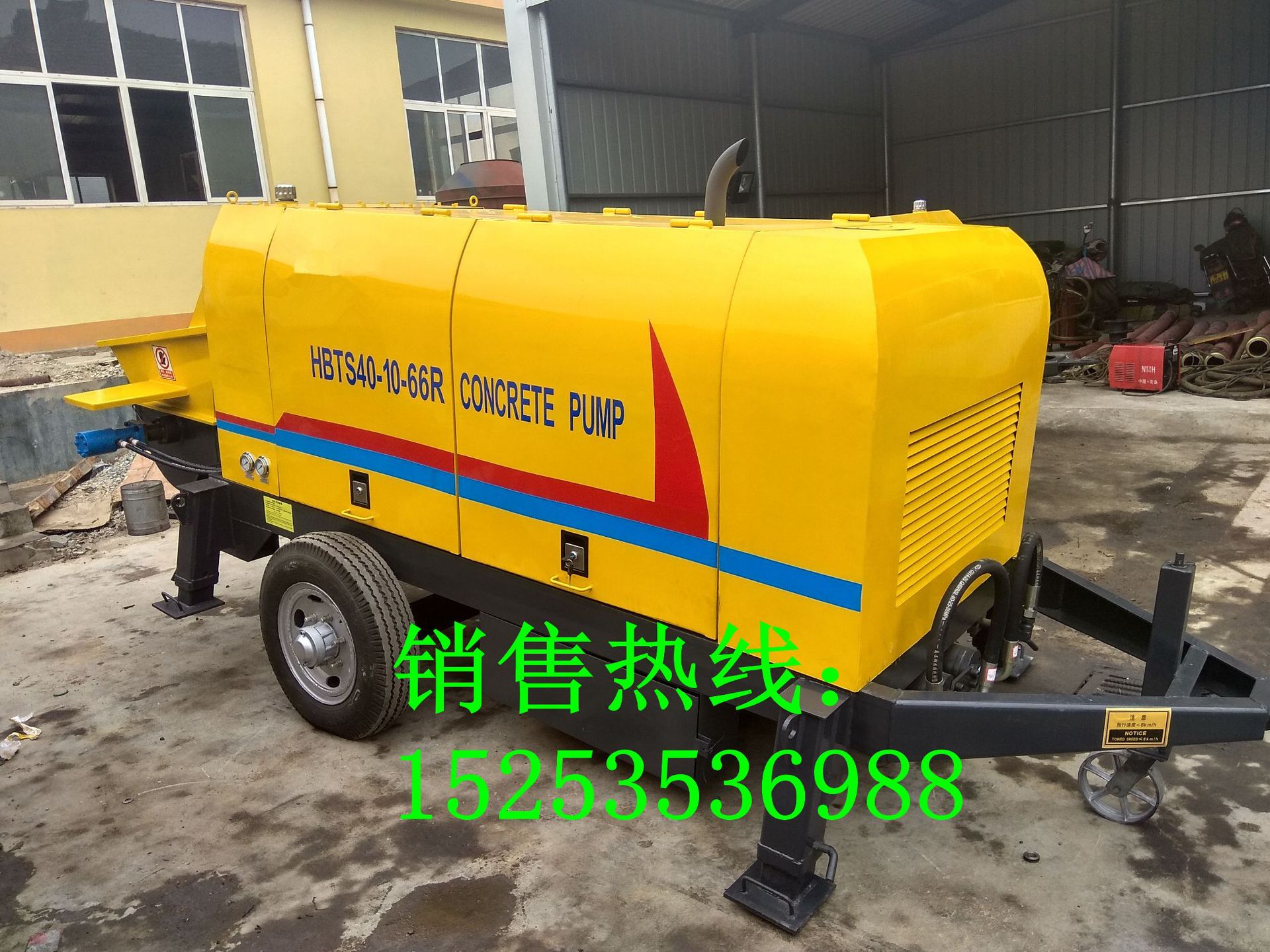

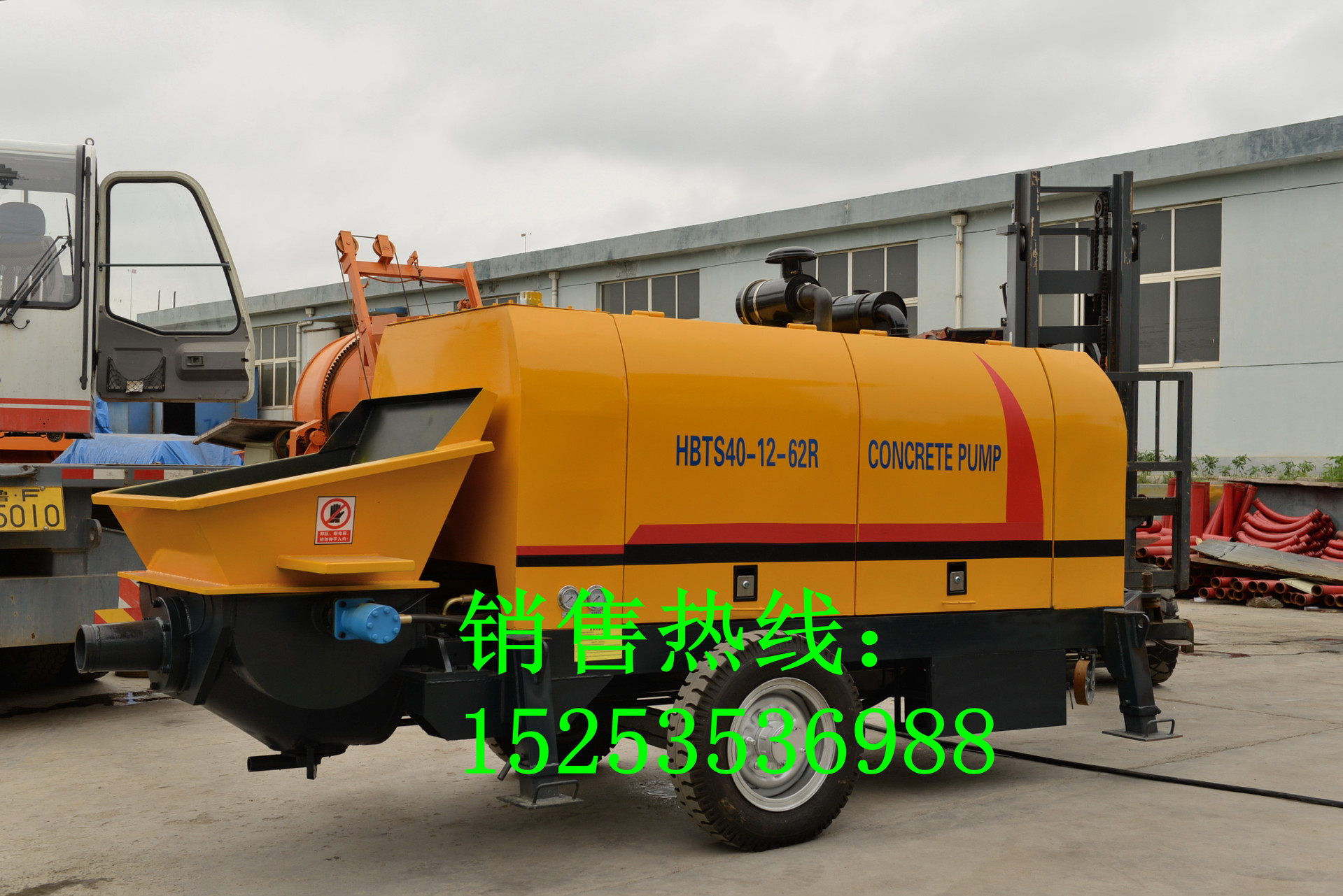

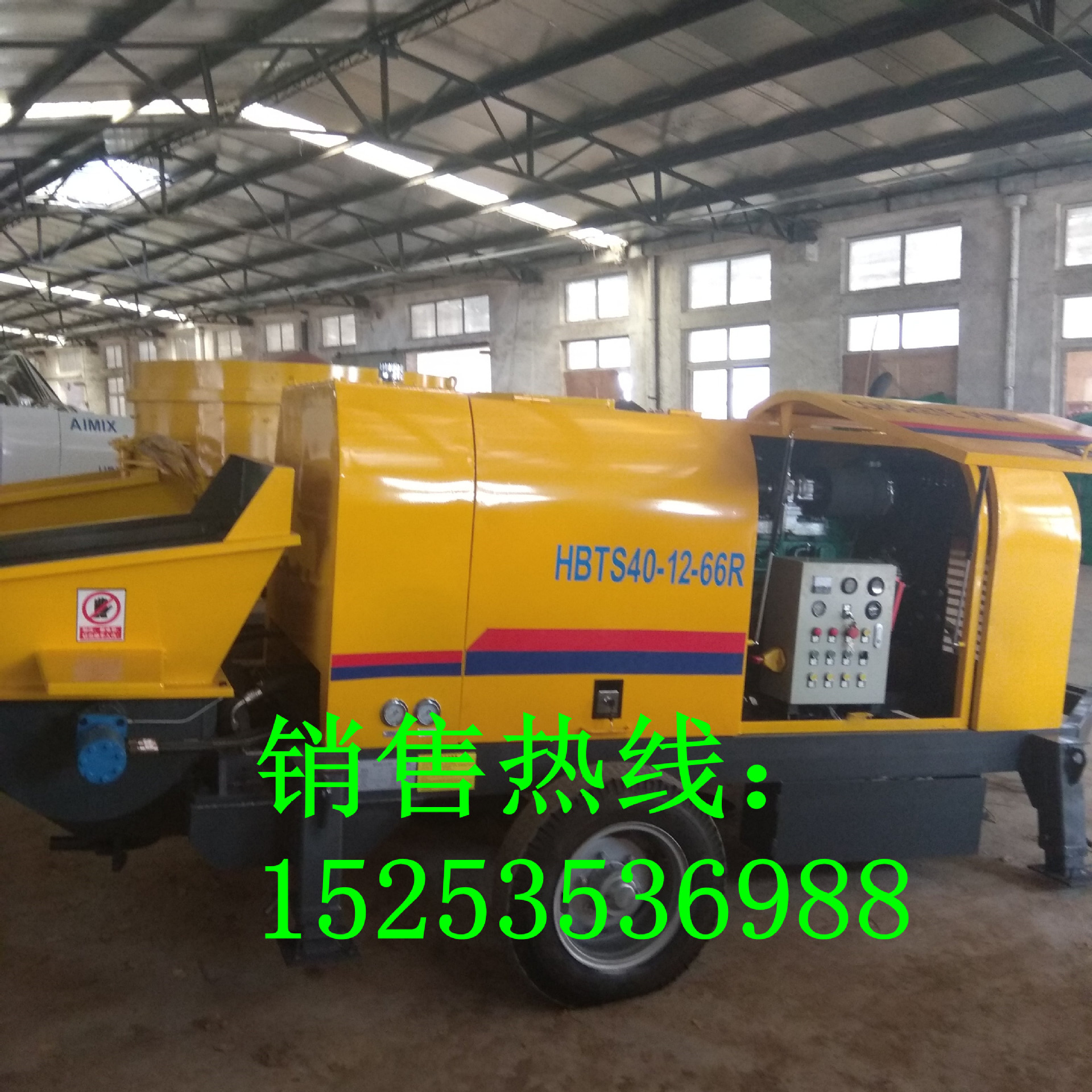

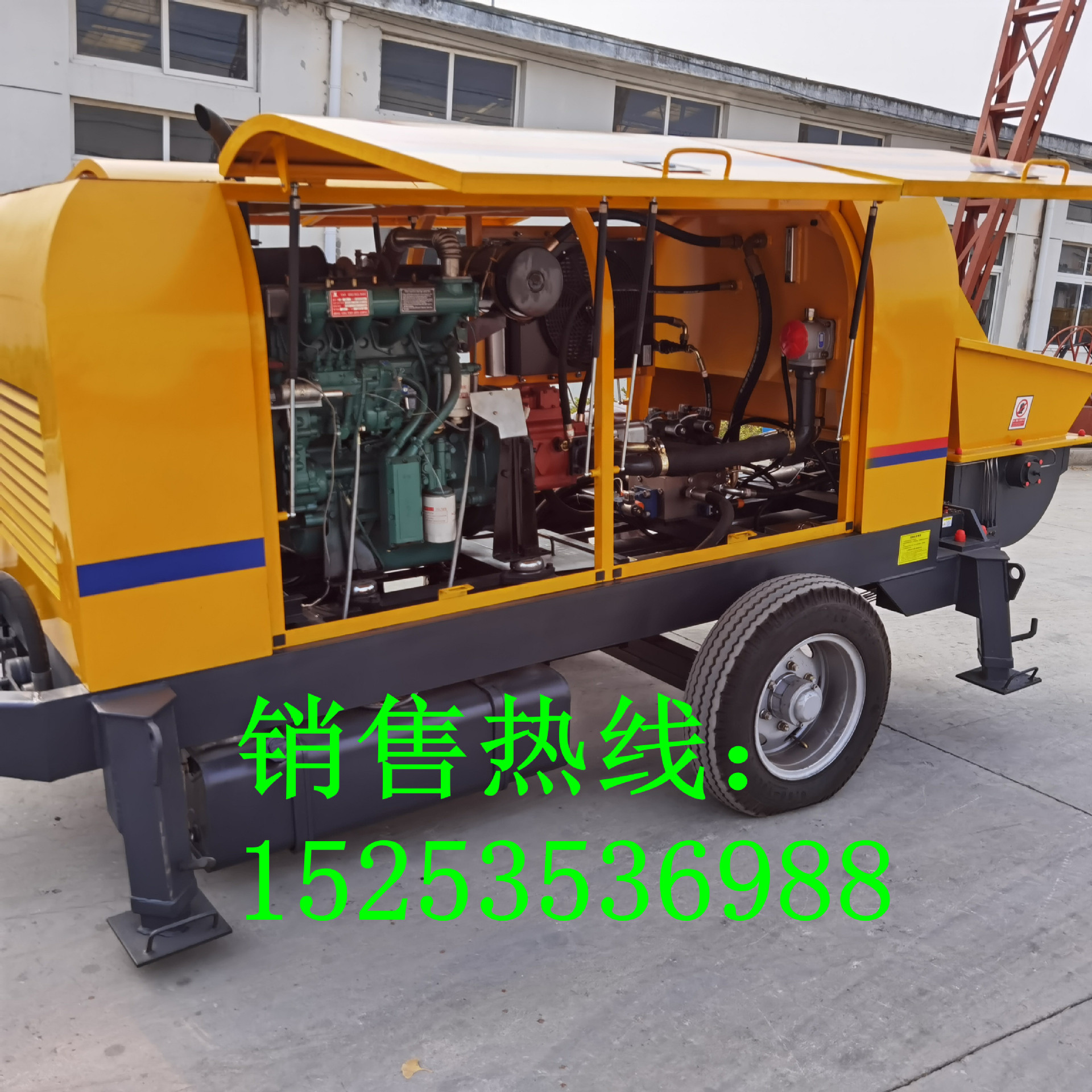

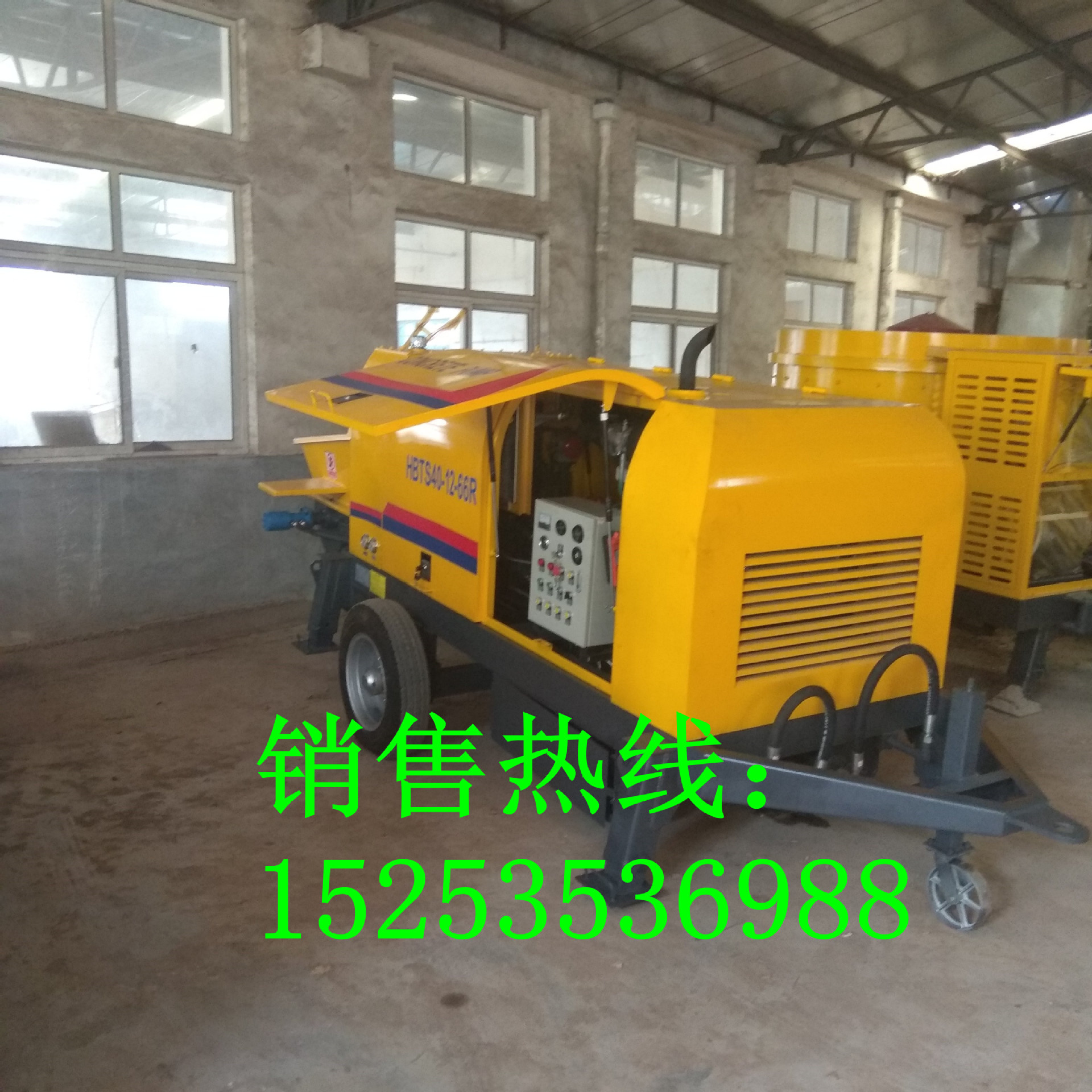

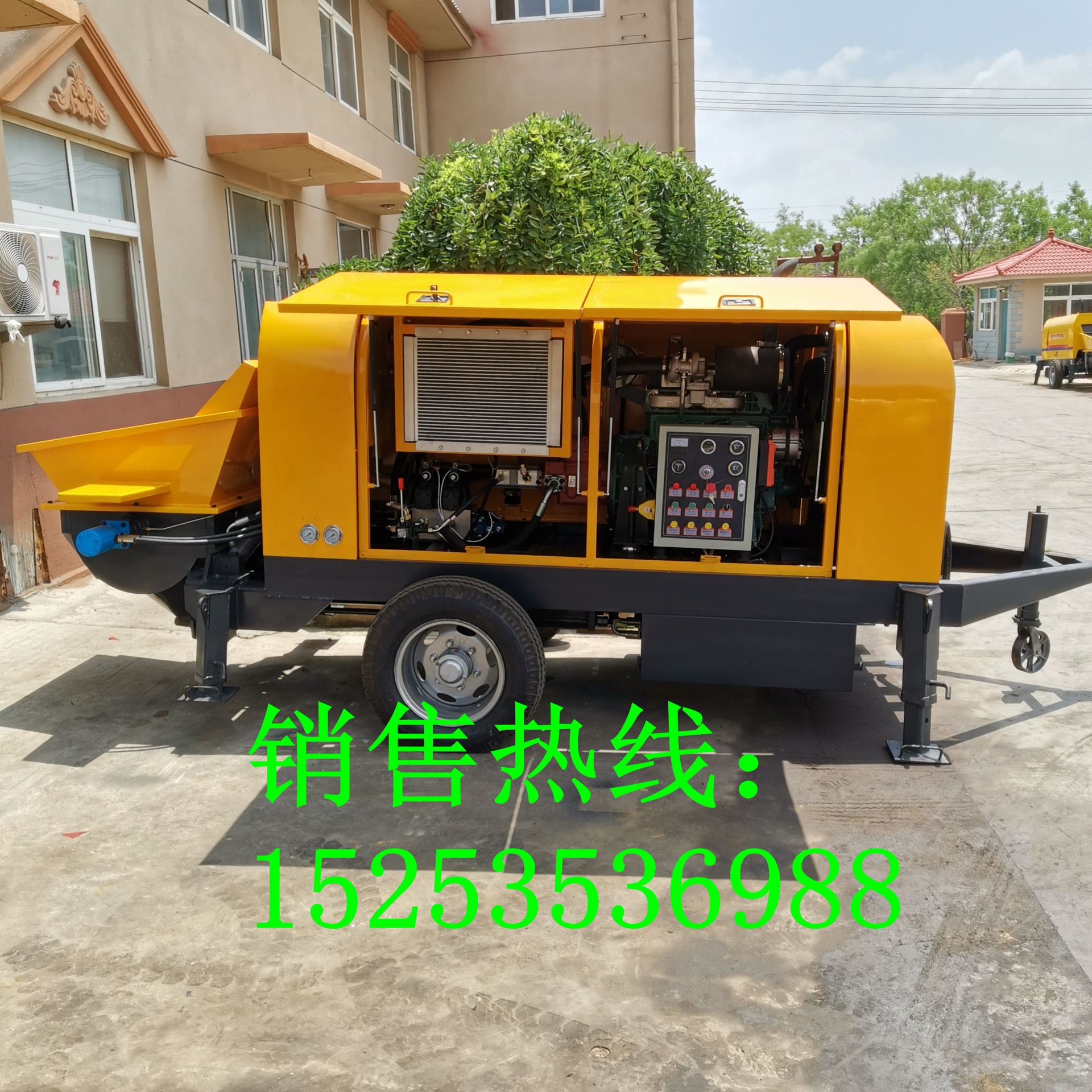

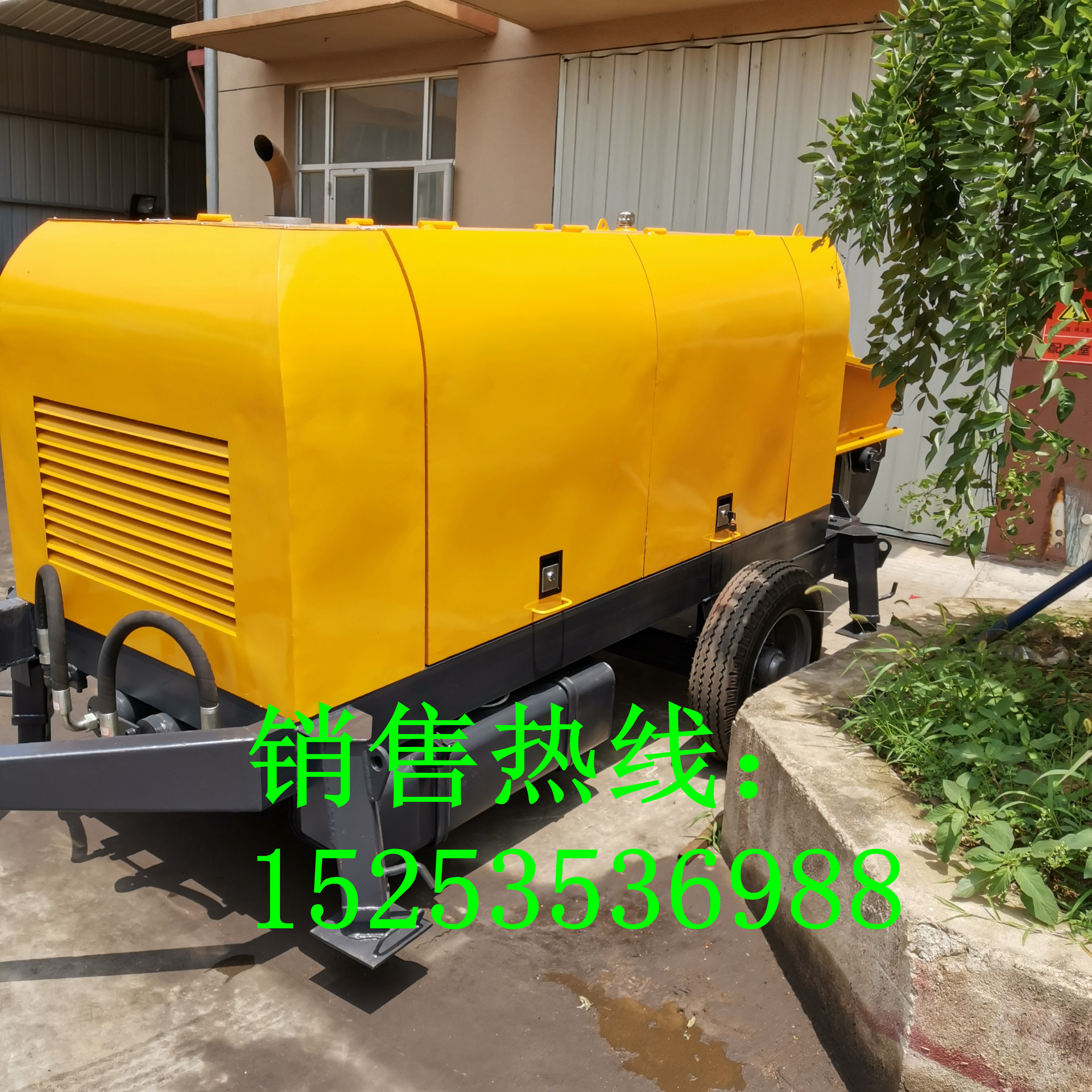

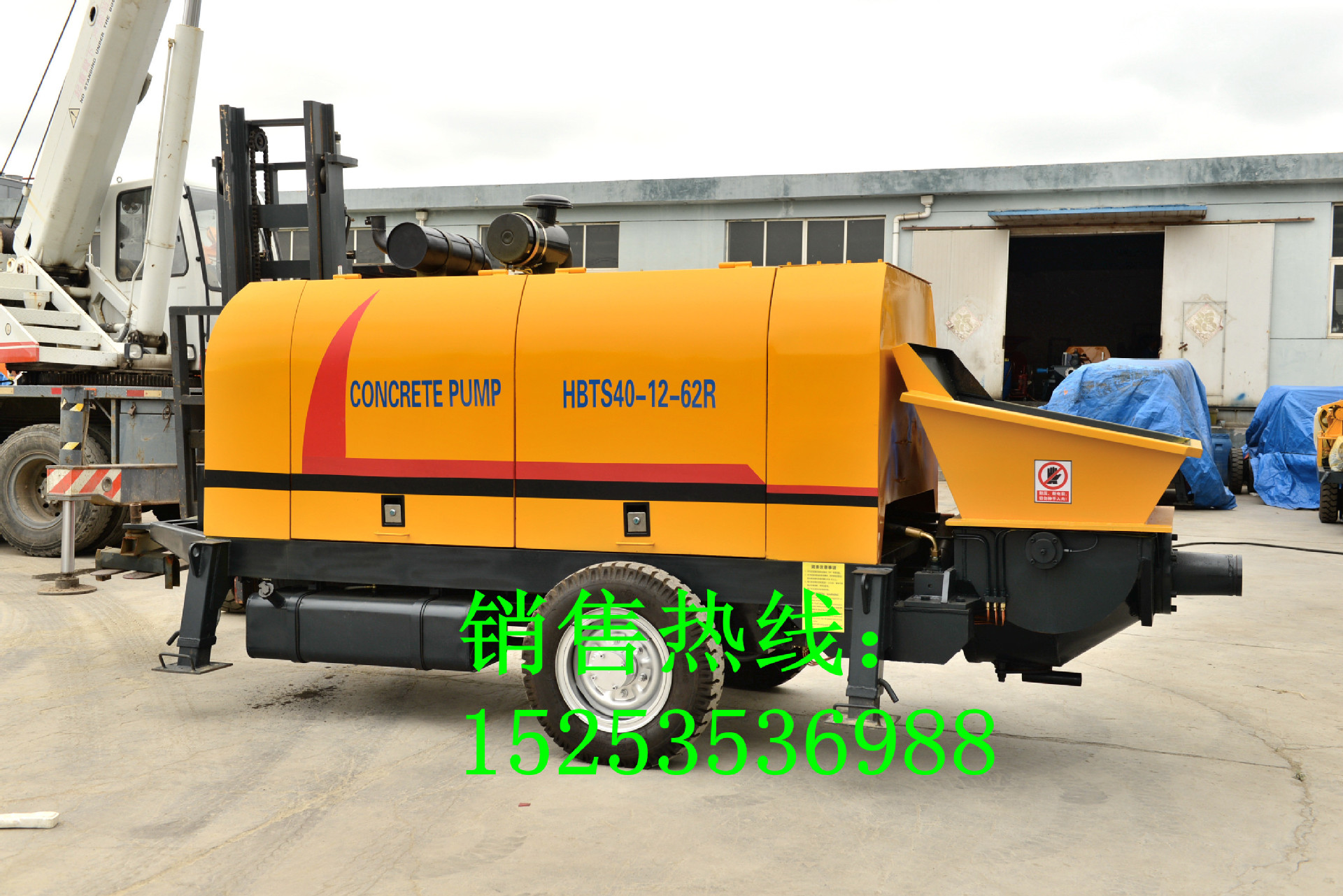

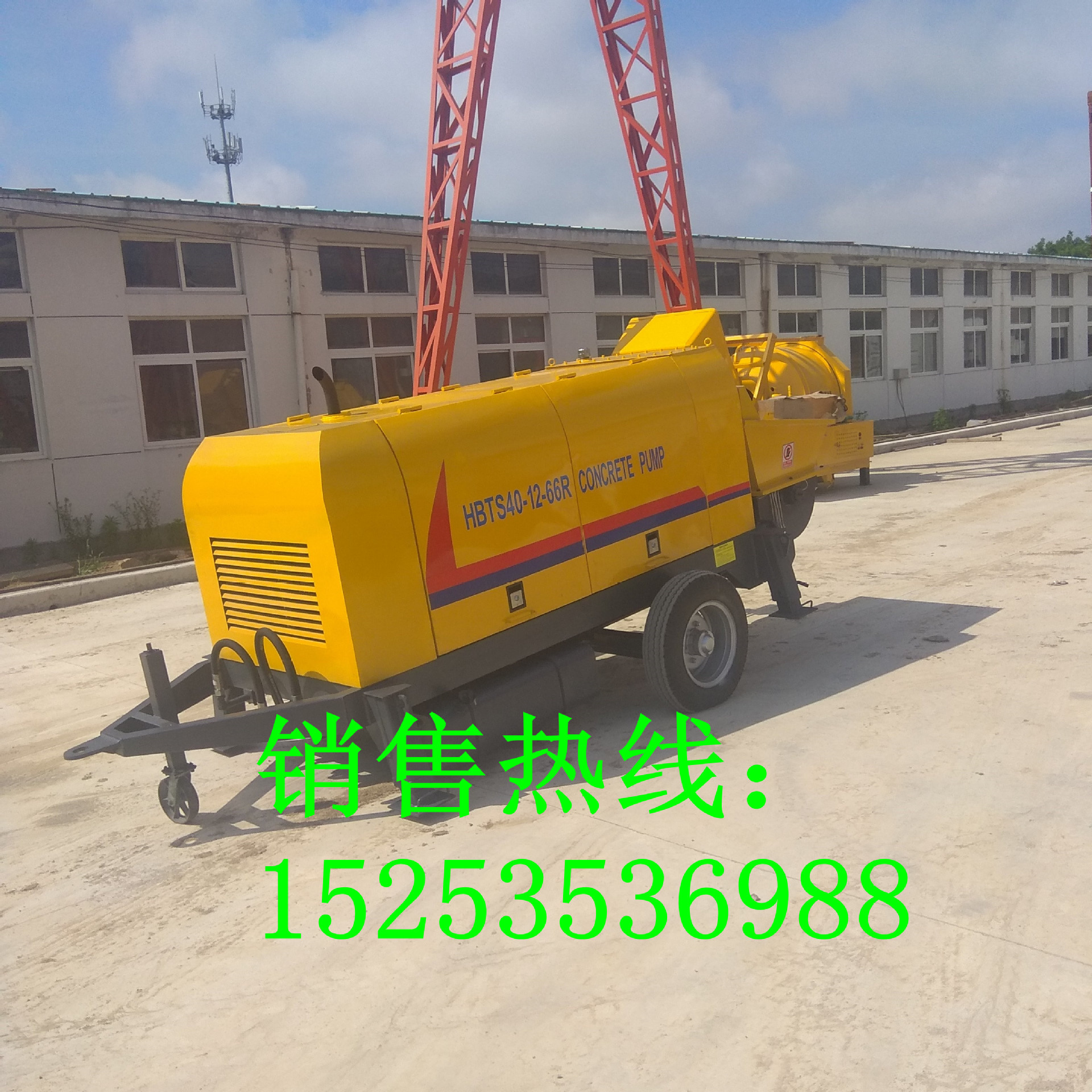

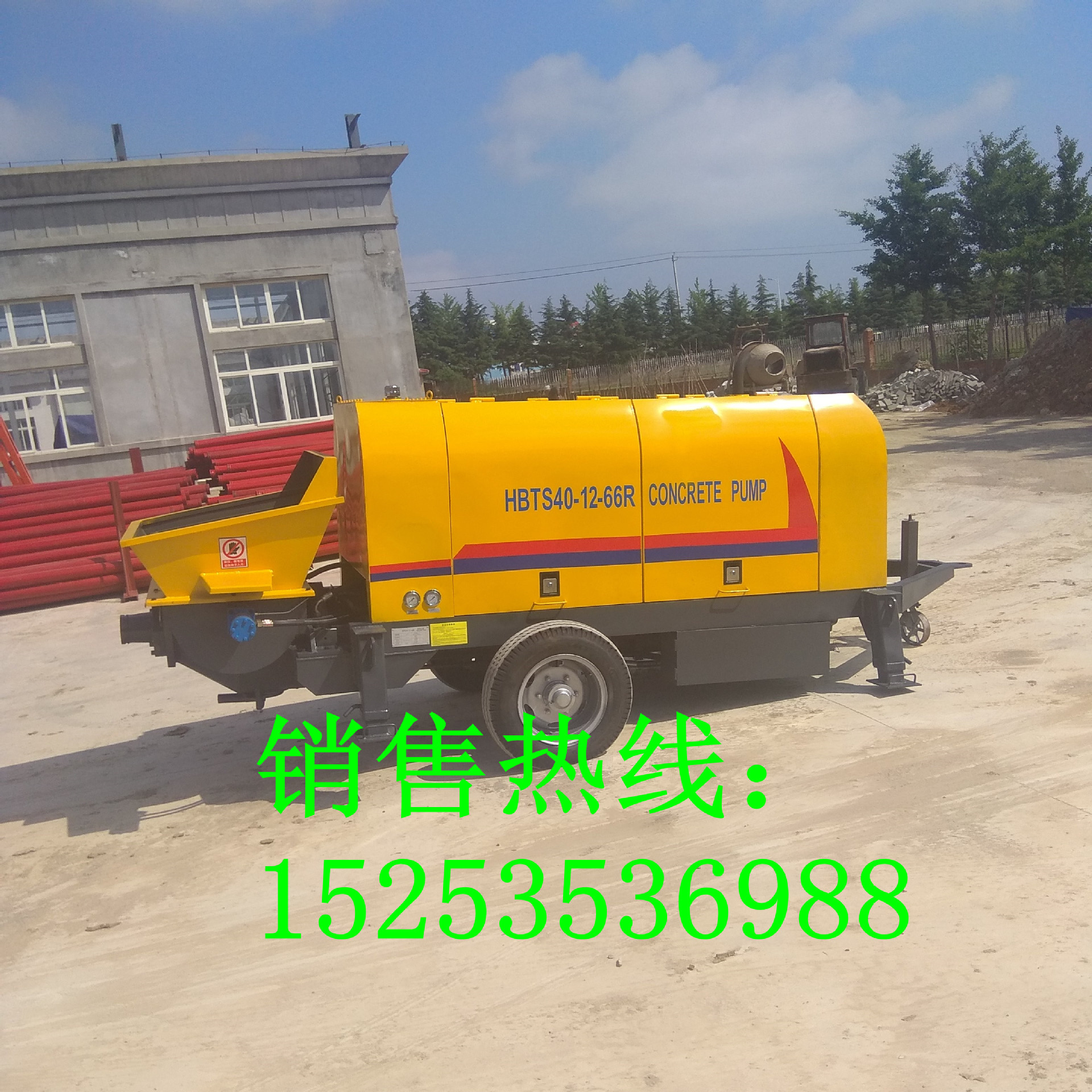

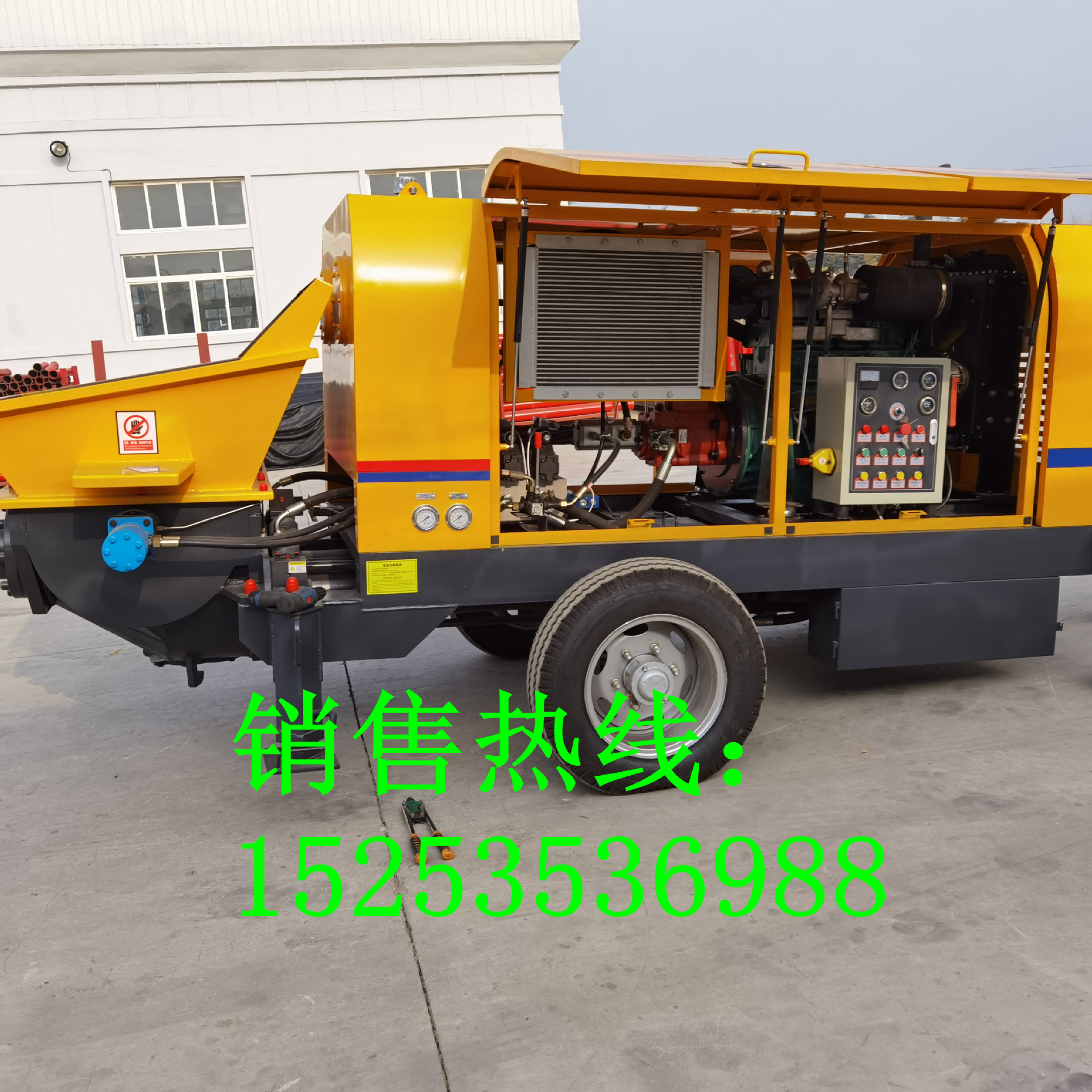

混凝土泵 HBTS40柴油泵 柴油电机动力地泵 拖泵 民房护坡高层隧道

混凝土输送泵型号Concrete transfer pump model

40

理论混凝土输送量

Theoretical concrete conveying capacity

45 m³/h

主油泵排量Main oil pump displacement

112 ml/r

混凝土输送压力Concrete transfer pressure

12 MPa

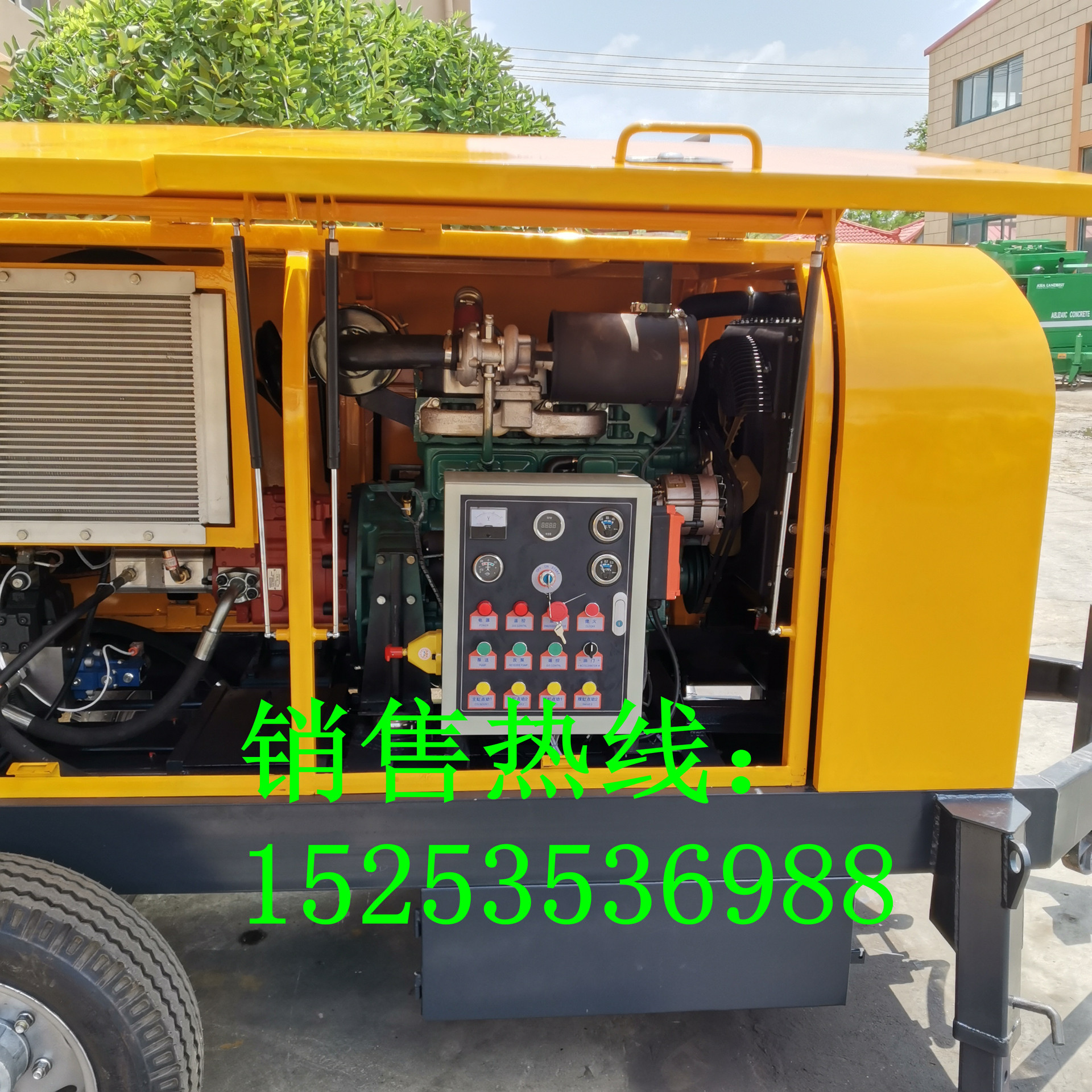

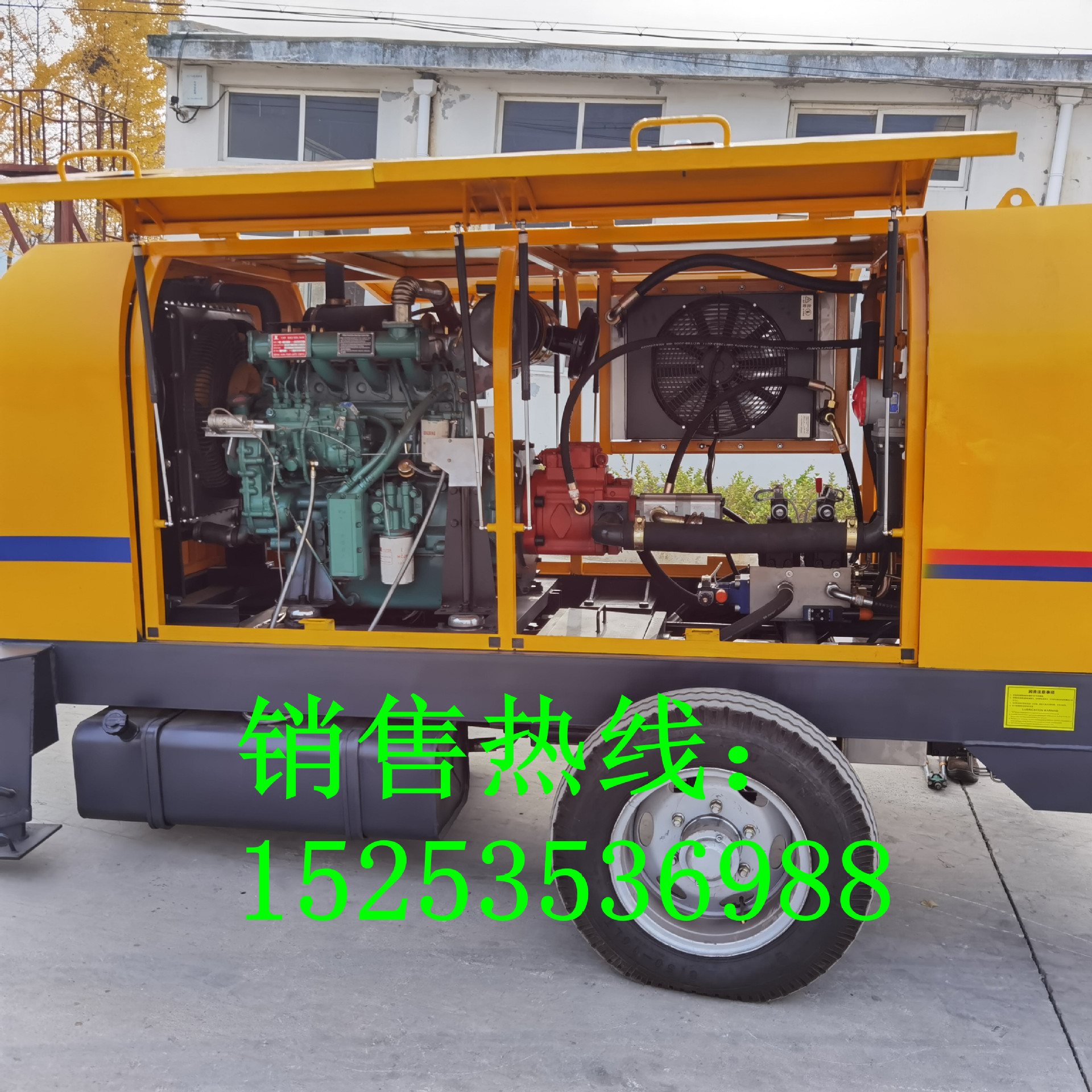

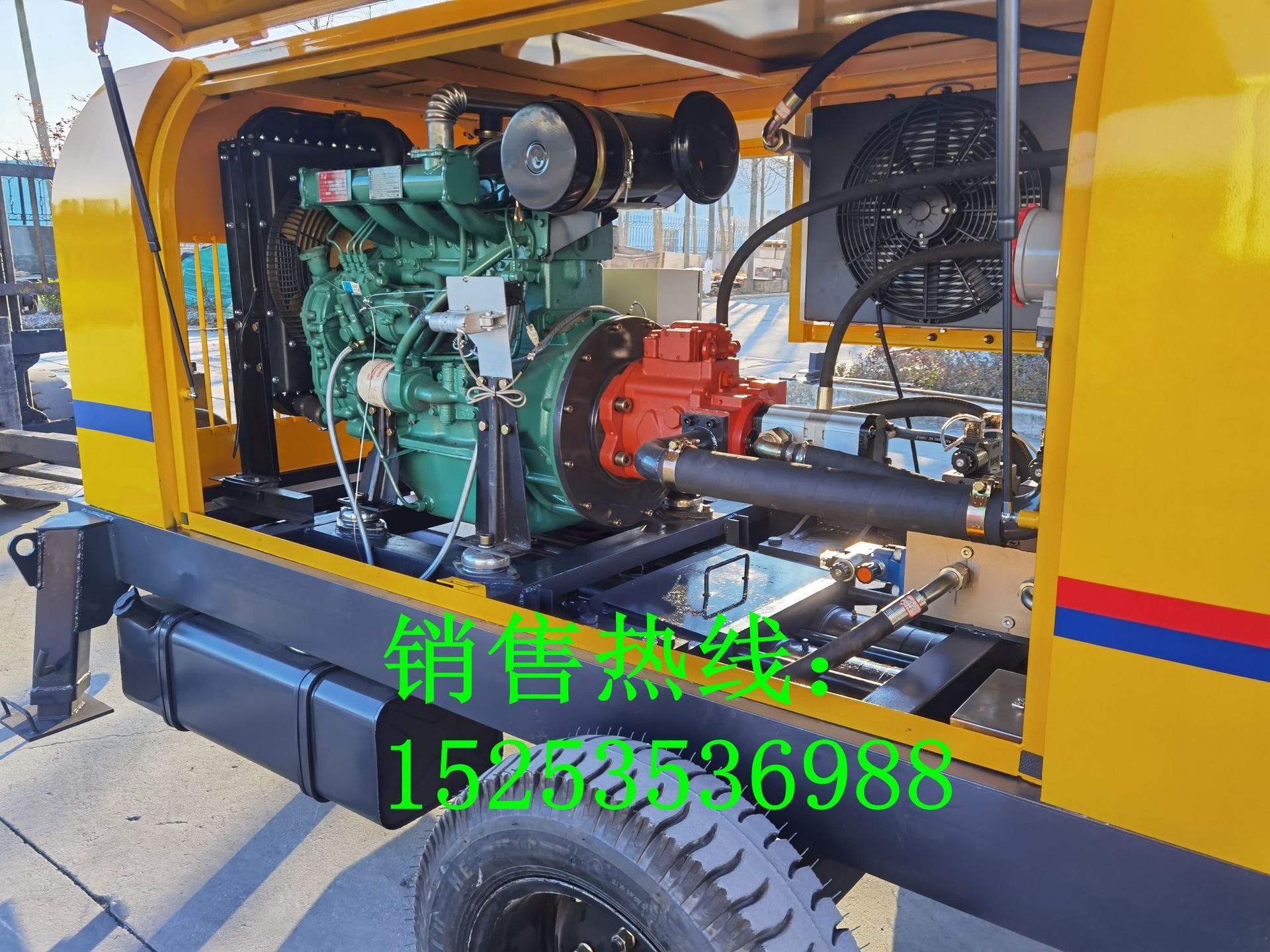

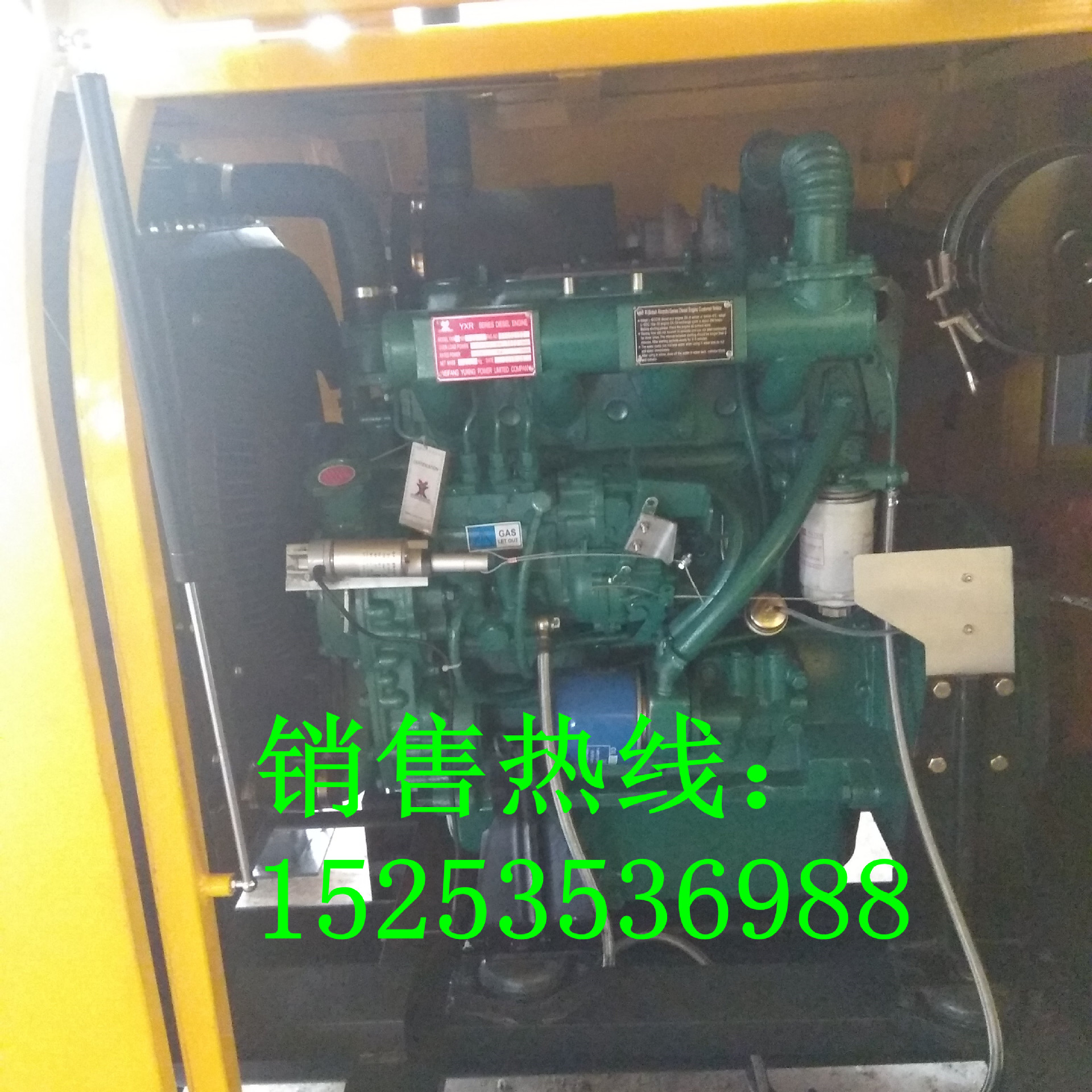

发动机功率Engine power

66 kw

发动机转速Engine speed

1800 r/min

理论混凝土输送垂直高度

Theoretical vertical height of concrete conveying

150 m

理论混凝土输送水平距离

Theoretical concrete conveying horizontal distance

500 m

混凝土输送缸缸径×行程

Concrete conveying cylinder diameter x stroke

Ф160×1100 mm

混凝土主油缸缸径×行程

Concrete main cylinder diameter × stroke

Ф100×1100 mm

料斗容积×上料高度Hopper volume x loading height

600L×1250mm

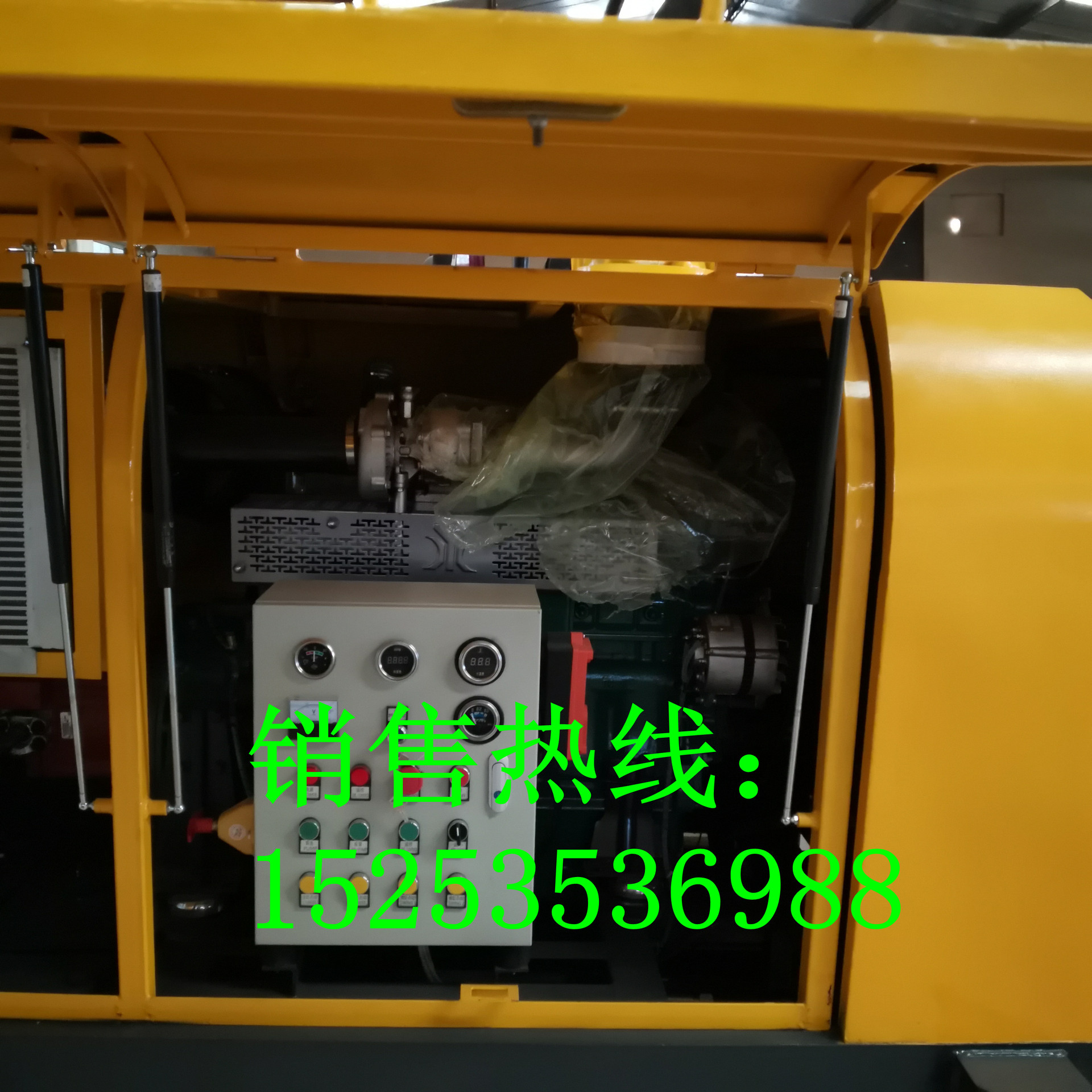

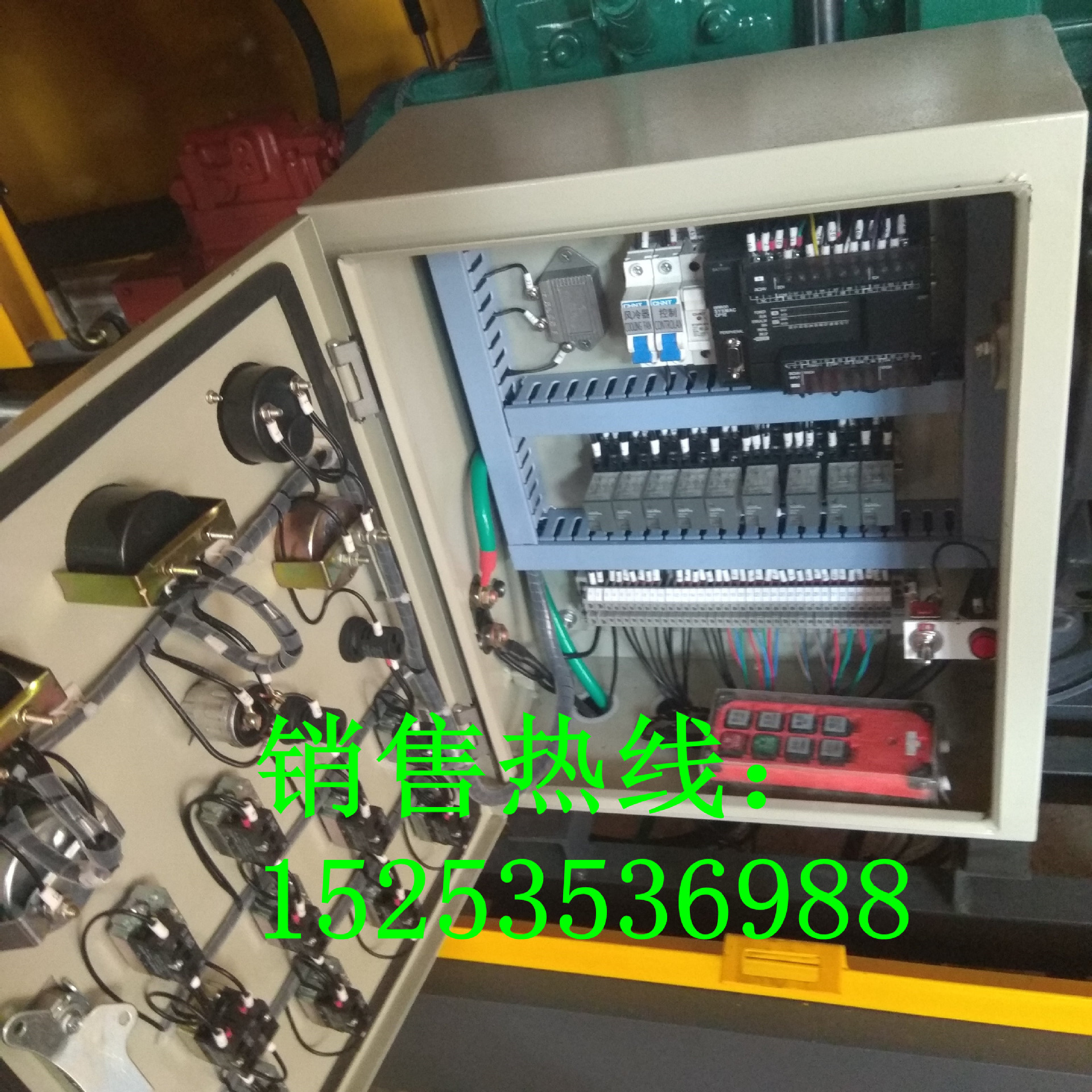

控制方式Control mode

遥控器Remote control

分配阀形式Distribution valve form

S管阀 S-pipe valve

液压油路形式Hydraulic oil circuit form

开式回路 Open loop

润滑系统Lubrication system

自动润滑

Automatic lubrication

泵送系统油压Pumping system oil pressure

32MPa

搅拌系统油压Mixing system oil pressure

8 MPa

液压油箱容积Hydraulic tank volume

450 L

允许混凝土骨料尺寸Allow concrete aggregate size

≤30mm

出料口内径Discharge port inside diameter

Ф125 mm

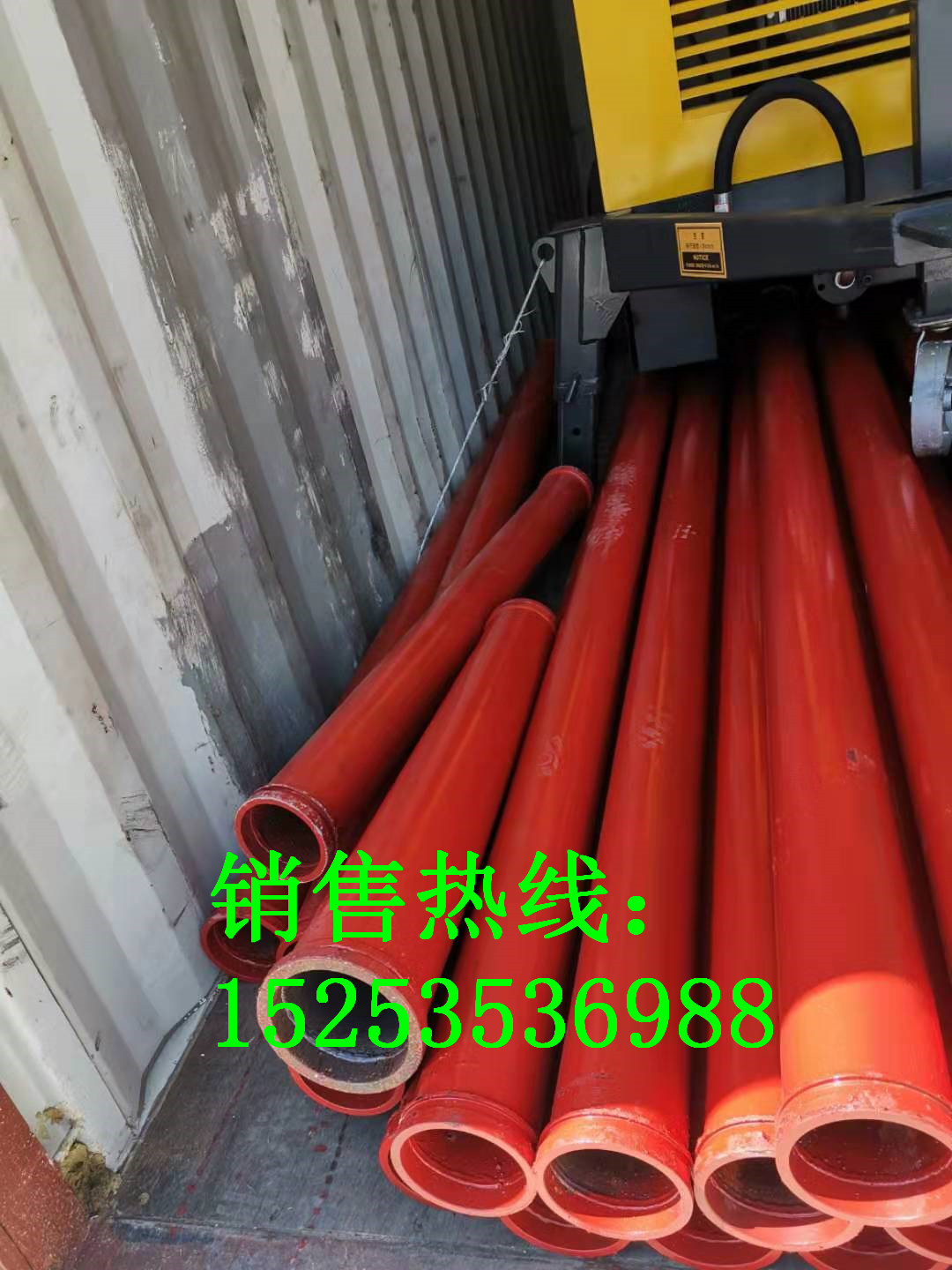

混凝土输送管内径

Inside diameter of concrete conveying pipe

Ф80 mm

设备外形尺寸：长×宽×高

Equipment dimensions: length × width × height

4800×1750×1900mm

设备重量Equipment weight

3700 kg
