混凝土泵主要技术参数 Main technical parameters
项目Project | 参数Parameter |
混凝土输送泵型号Concrete transfer pump model | 40 |
理论混凝土输送量 Theoretical concrete conveying capacity | 45 m³/h |
主油泵排量Main oil pump displacement | 112 ml/r |
混凝土输送压力Concrete transfer pressure | 12 MPa |
发动机功率Engine power | 66 kw |
发动机转速Engine speed | 1800 r/min |
理论混凝土输送垂直高度 Theoretical vertical height of concrete conveying | 150 m |
理论混凝土输送水平距离 Theoretical concrete conveying horizontal distance | 500 m |
混凝土输送缸缸径×行程 Concrete conveying cylinder diameter x stroke | Ф160×1100 mm |
混凝土主油缸缸径×行程 Concrete main cylinder diameter × stroke | Ф100×1100 mm |
料斗容积×上料高度Hopper volume x loading height | 600L×1250mm |
控制方式Control mode | 遥控器Remote control |
分配阀形式Distribution valve form | S管阀 S-pipe valve |
液压油路形式Hydraulic oil circuit form | 开式回路 Open loop |
润滑系统Lubrication system | 自动润滑 Automatic lubrication |
泵送系统油压Pumping system oil pressure | 32MPa |
搅拌系统油压Mixing system oil pressure | 8 MPa |
液压油箱容积Hydraulic tank volume | 450 L |
允许混凝土骨料尺寸Allow concrete aggregate size | ≤30mm |
出料口内径Discharge port inside diameter | Ф125 mm |
混凝土输送管内径 Inside diameter of concrete conveying pipe | Ф80 mm |
设备外形尺寸：长×宽×高 Equipment dimensions: length × width × height | 4800×1750×1900mm |
设备重量Equipment weight | 3700 kg |
混凝土泵内部图片

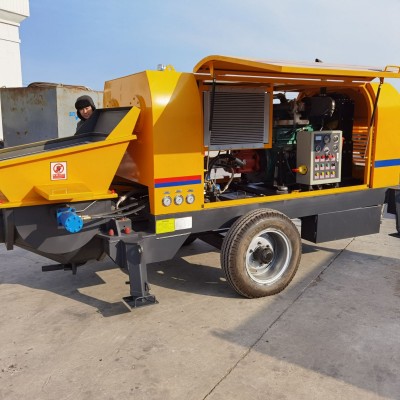

混凝土泵外形图片

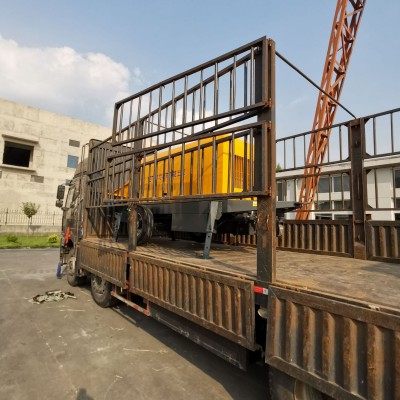

混凝土泵集装箱发货
